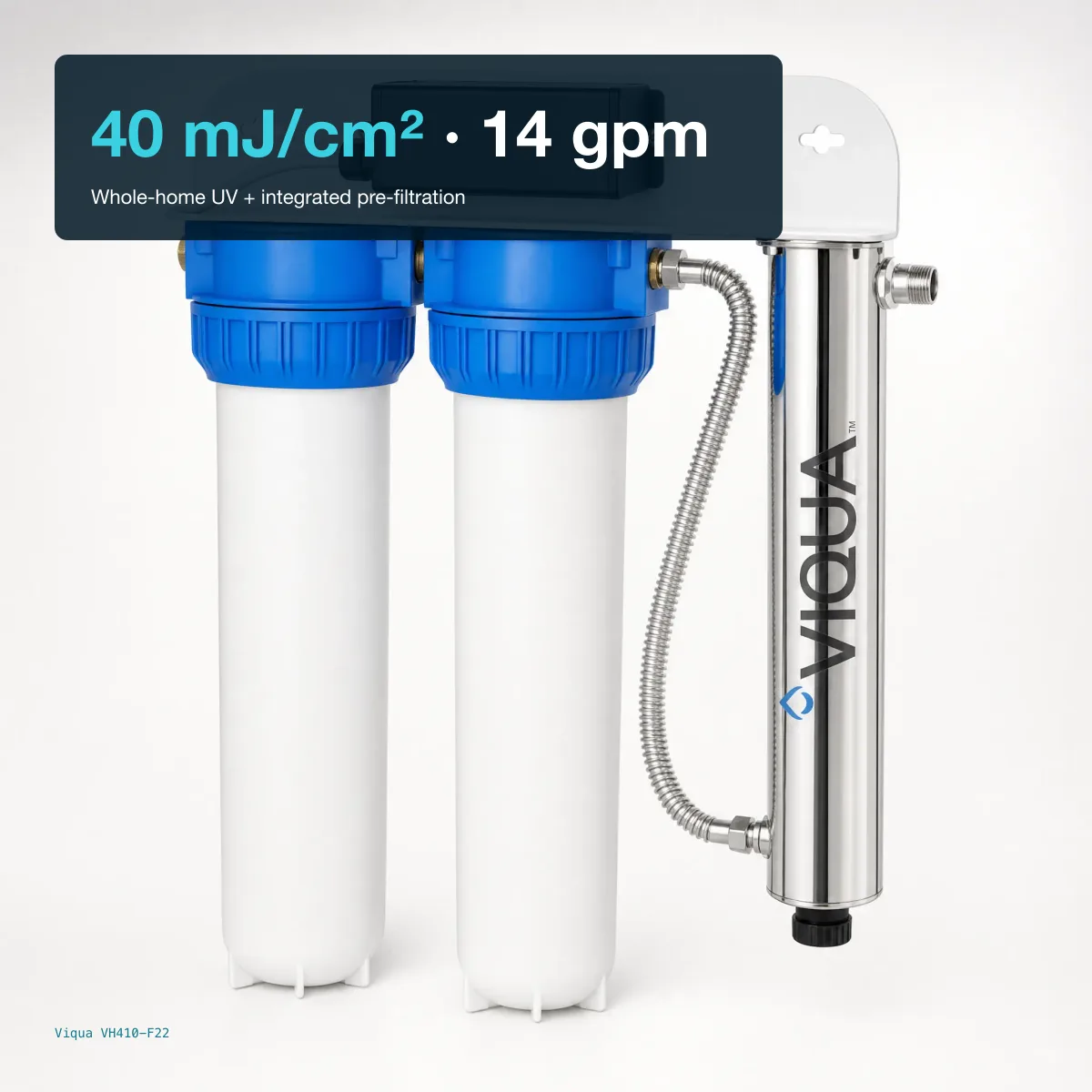

Viqua VH410-F22
UV disinfection with integrated sediment and carbon block pre-filtration, rated 14 gpm at 40 mJ/cm² (95% UVT).
Key specifications
- Flow @ 40 mJ/cm²
- 14 gpm (54 lpm; 3.3 m³/hr) at 95% UVT
- Flow @ 30 mJ/cm²
- 18 gpm (70 lpm; 4.2 m³/hr) at 95% UVT
- Flow @ 16 mJ/cm²
- 34 gpm (130 lpm; 7.8 m³/hr) at 95% UVT
- Lamp life
- 9,000 hours
- Chamber
- 304 stainless steel
- Connections
- 3/4" FNPT inlet; 3/4" FNPT / 1" MNPT combo outlet
- Dimensions
- 25.1" × 11.5" × 28.2" (63.8 × 29.2 × 71.6 cm)
- Filters
- Sediment + carbon block (included)
UV Disinfection with Integrated Pre-Filtration

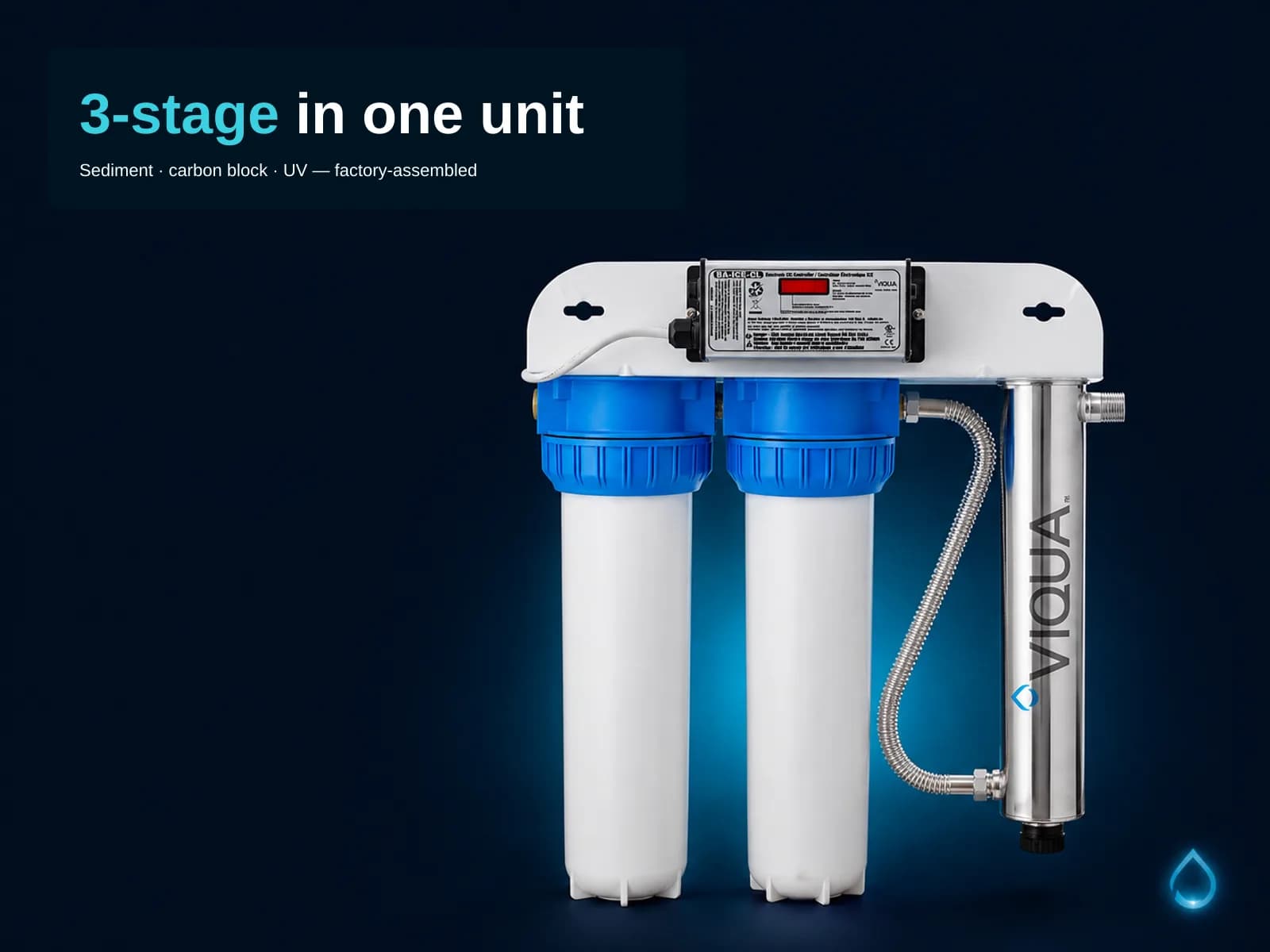

The VH410-F22 combines a stainless-steel UV chamber with sediment and carbon block filters in a premium three-piece filter housing with removable sump. Flow is rated at three UV doses, all at 95% UVT — 34 gpm (130 lpm) at 16 mJ/cm², 18 gpm (70 lpm) at 30 mJ/cm² and 14 gpm (54 lpm) at 40 mJ/cm² — and a Safety-Loc connector with interlock ensures power is disconnected before the lamp can be removed.
Operating limits & electrical
- UV sensor
- Not listed (spec sheet: N)
- Power consumption
- 60 W
- Controller dimensions
- 7.25 × 3.25 × 2.5 in (18.6 × 8.1 × 6.4 cm)
- Influent water temperature
- 2 to 40°C (36 to 104°F)
- Maximum operating pressure
- 125 psi (8.62 bar)
Pre-filtration & safety
- Chamber

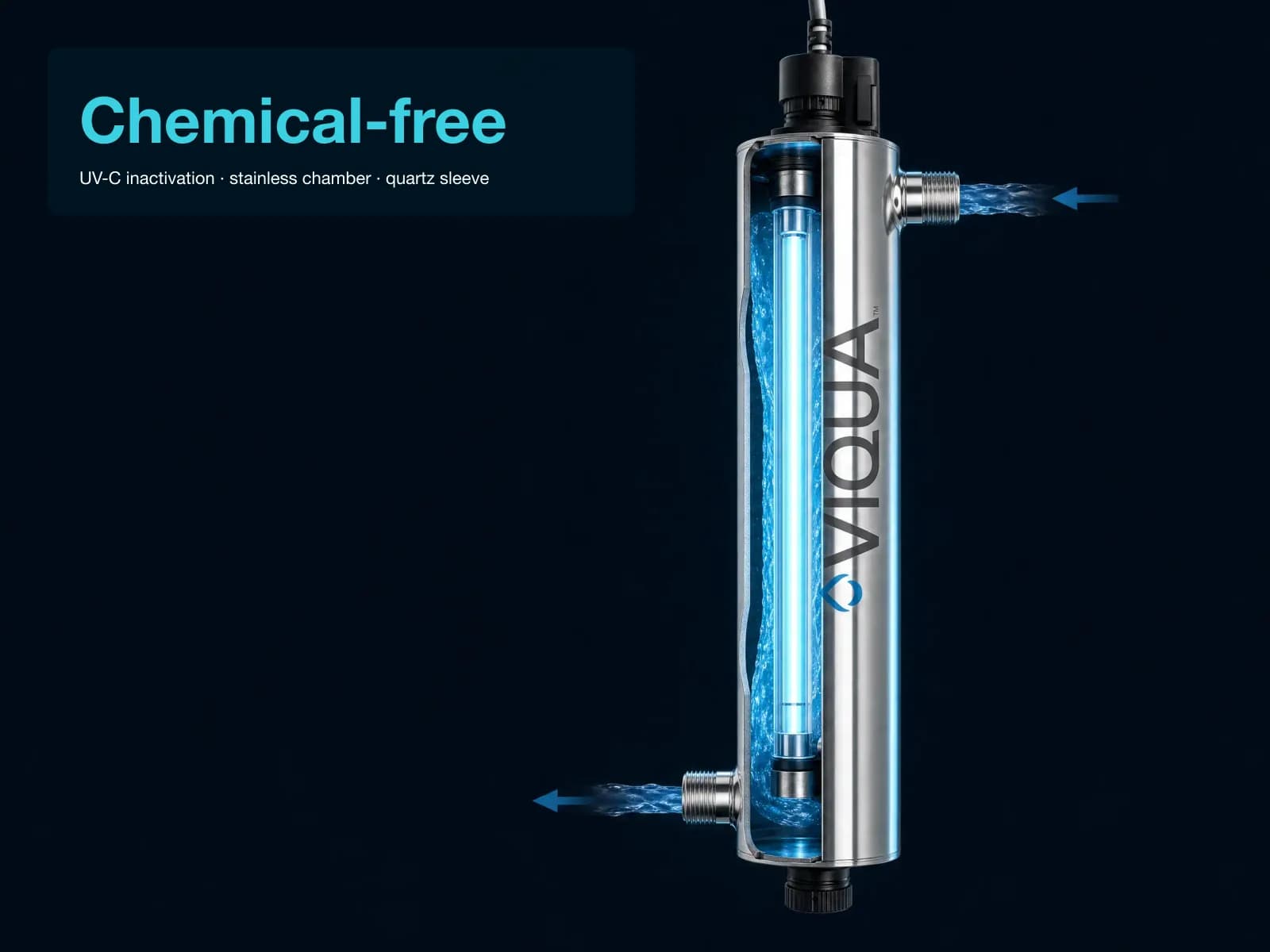

- Durable stainless-steel chamber to prolong life and eliminate UV light degradation
- Filter housing
- Premium three-piece filter housing with removable sump
- Lamp interlock

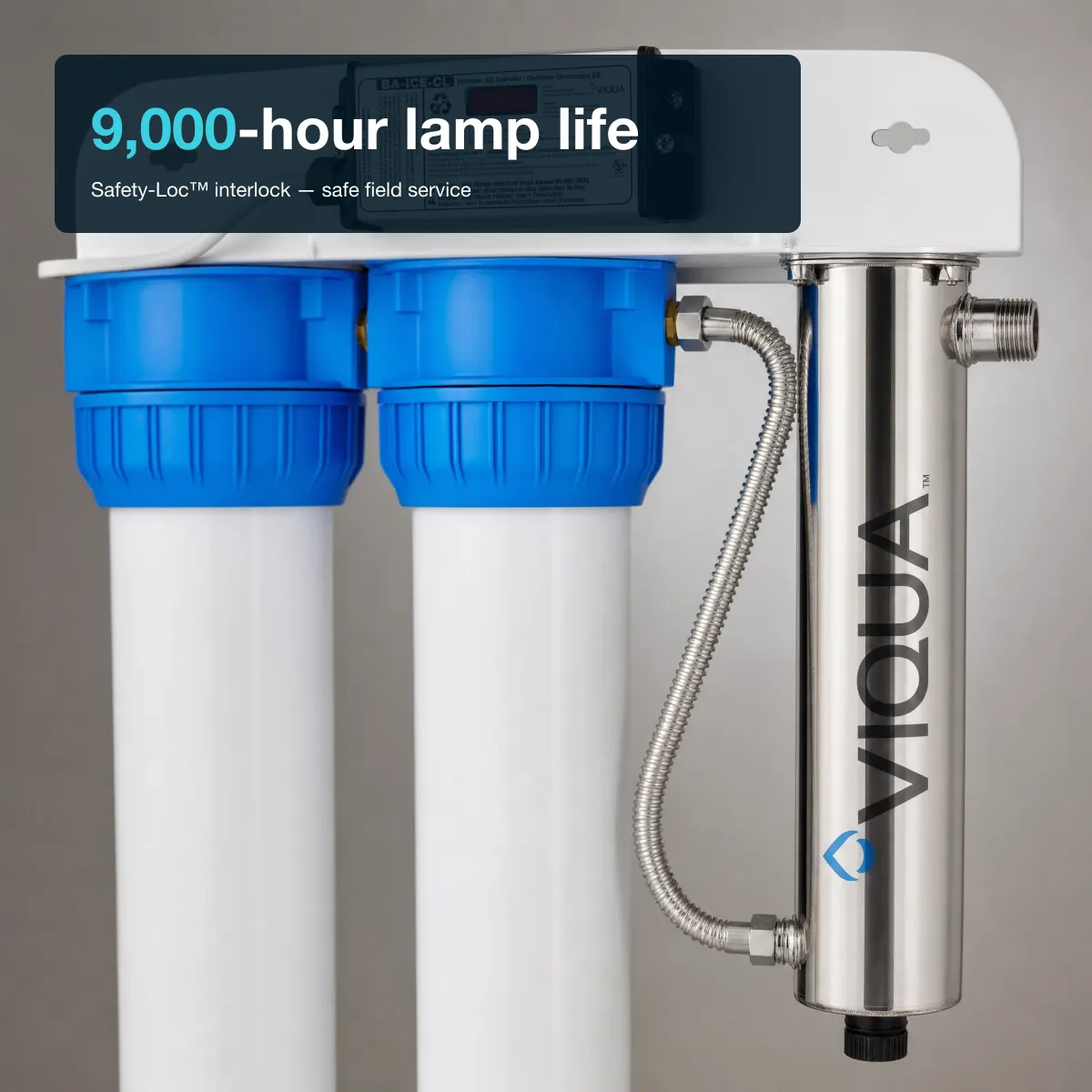

- Safety-Loc connector — power is disconnected before the lamp can be removed
- Carbon filter housing
- 20 in.
- Sediment filter housing
- 20 in.
Pathogen targets (listed on the product page)
- Listed targets
- Cryptosporidium, Giardia, pathogenic E. coli, Campylobacter, Legionella, Salmonella, Shigella, Norovirus, Enterovirus, Hepatitis A virus
Best for
Key product advantages
- Integrated sediment and carbon block filters with a three-piece filter housing and removable sump
- Flow rated at three UV doses at 95% UVT — 34 gpm (130 lpm) at 16, 18 gpm (70 lpm) at 30 and 14 gpm (54 lpm) at 40 mJ/cm²
- Safety-Loc interlock disconnects power before the lamp can be removed
- Durable stainless-steel chamber
- Ten pathogen targets listed, including Cryptosporidium and Giardia
