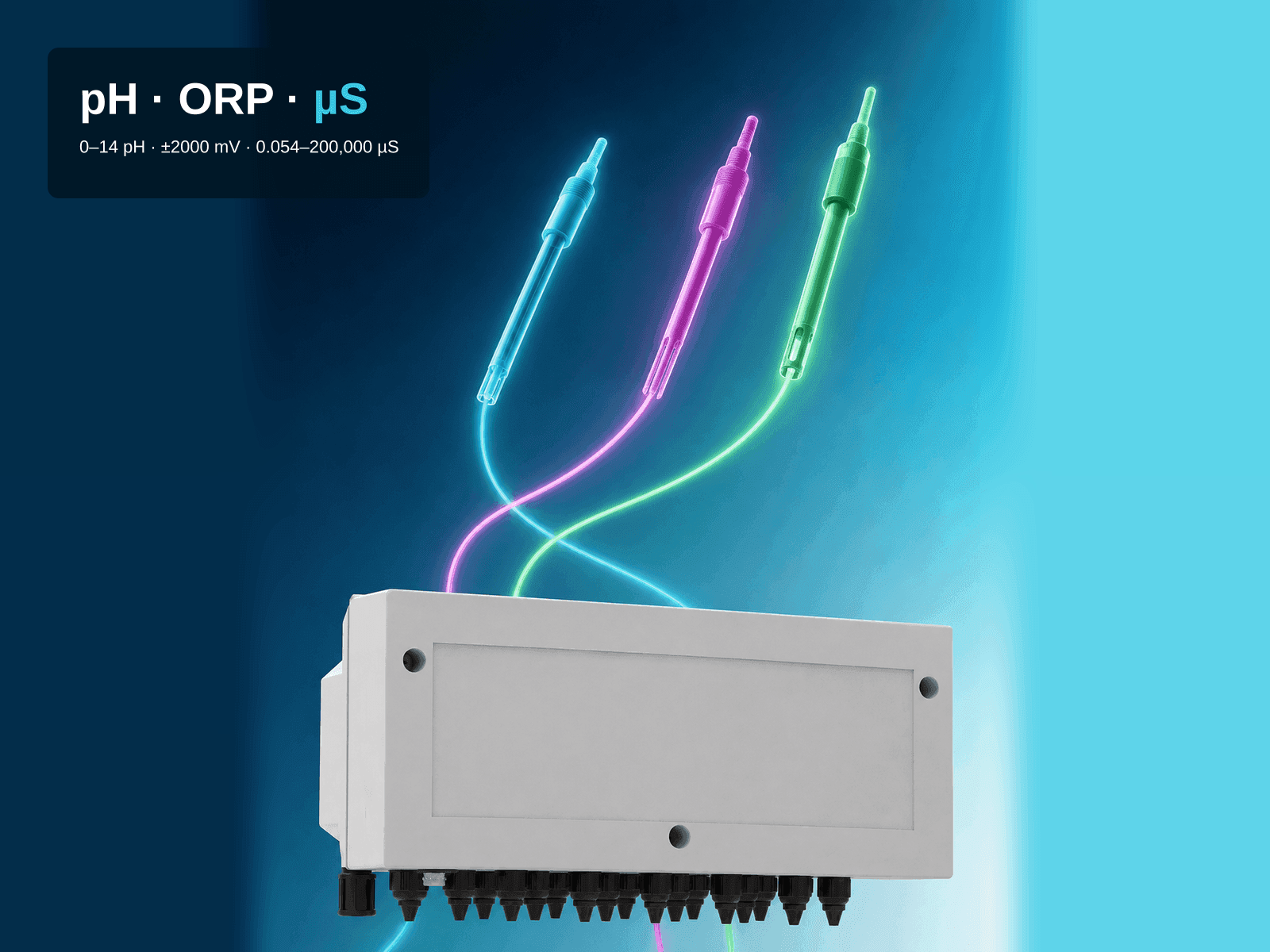

SEKO Kontrol 800 Multi-Parameter Controller

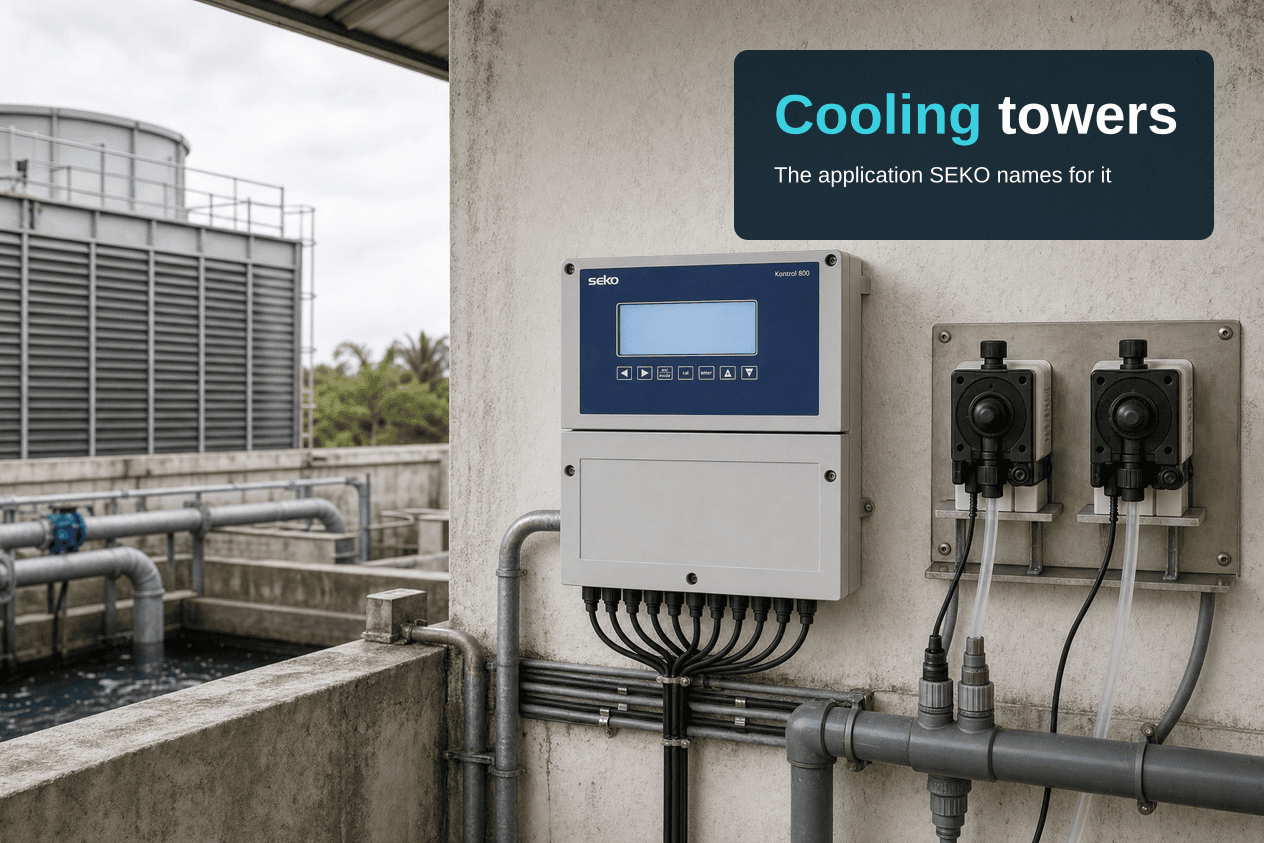

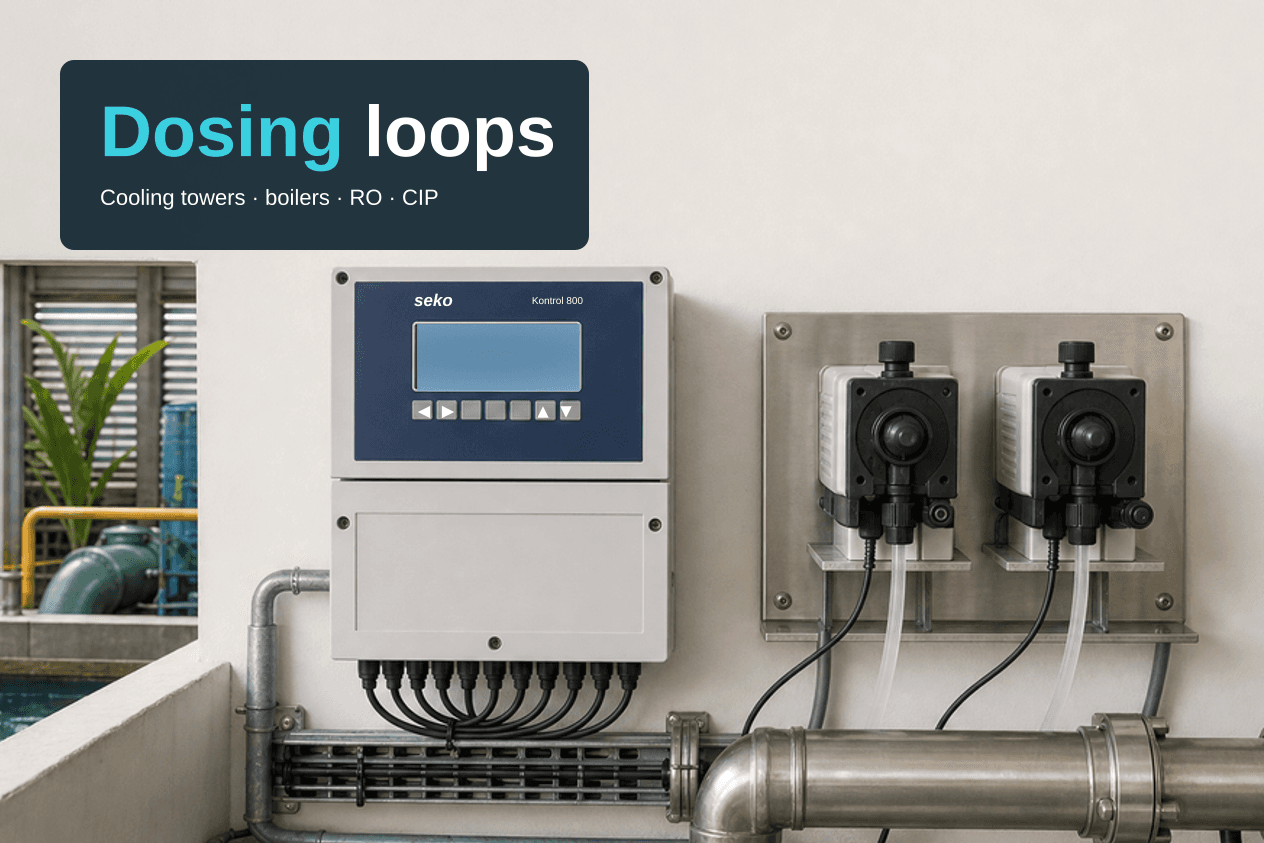

Multi-parameter water-treatment controller for pH, ORP and conductivity — SEKO's stated example is cooling-tower control.
Key specifications
- Comms
- RS485 Modbus RTU
- Power
- 100-240 Vac 50/60 Hz, 15 W

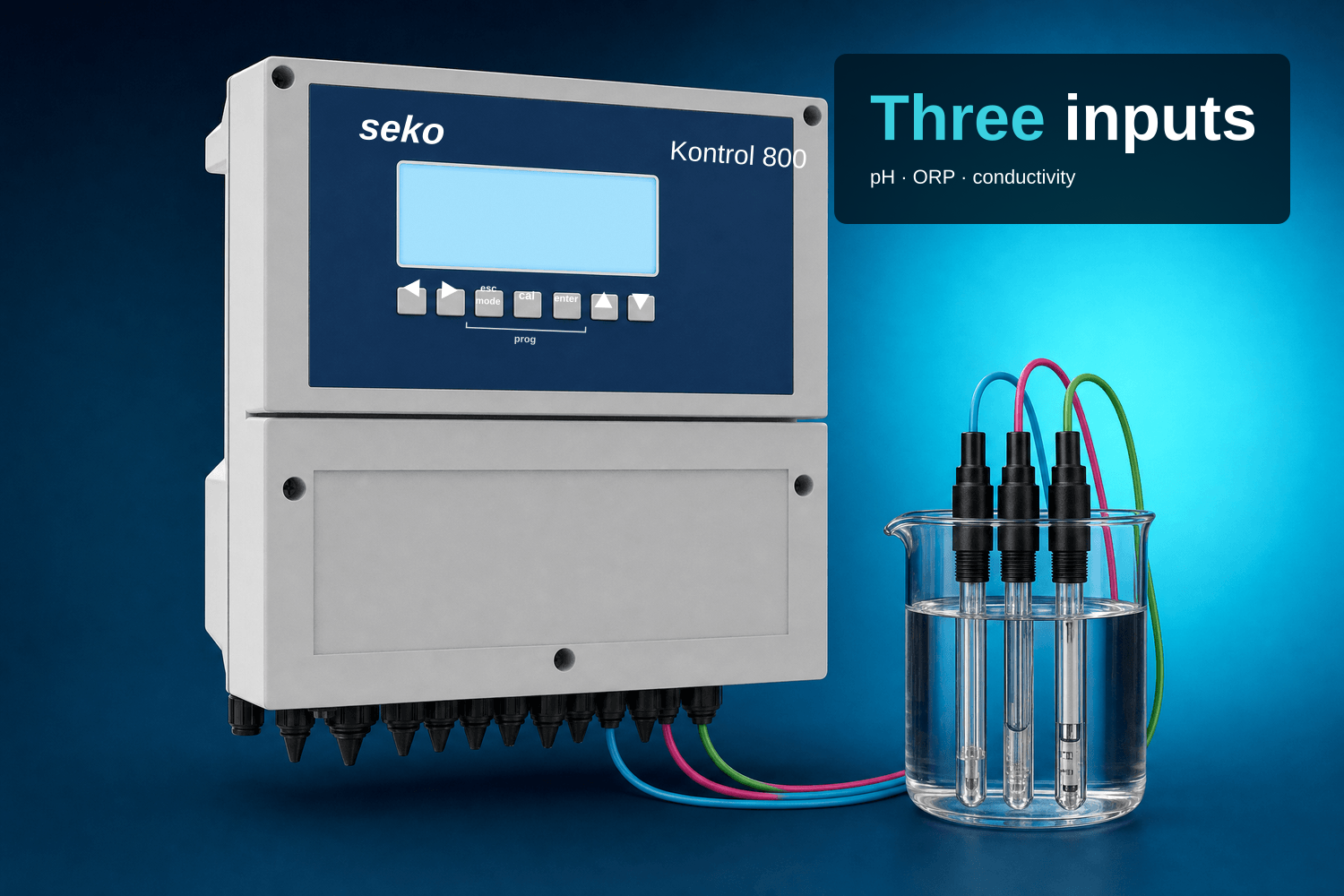

- Inputs
- pH, ORP, conductivity (three channels, K800L05 build)
- Ranges
- pH 0–14 ±0.01 · ORP ±2000 mV ±1 mV · Cond 0.054–200,000 μS ±2%
- Outputs
- Relay outputs: 3 per datasheet description, 6 per its output list — confirm per build · 2× 4-20 mA · 2× frequency

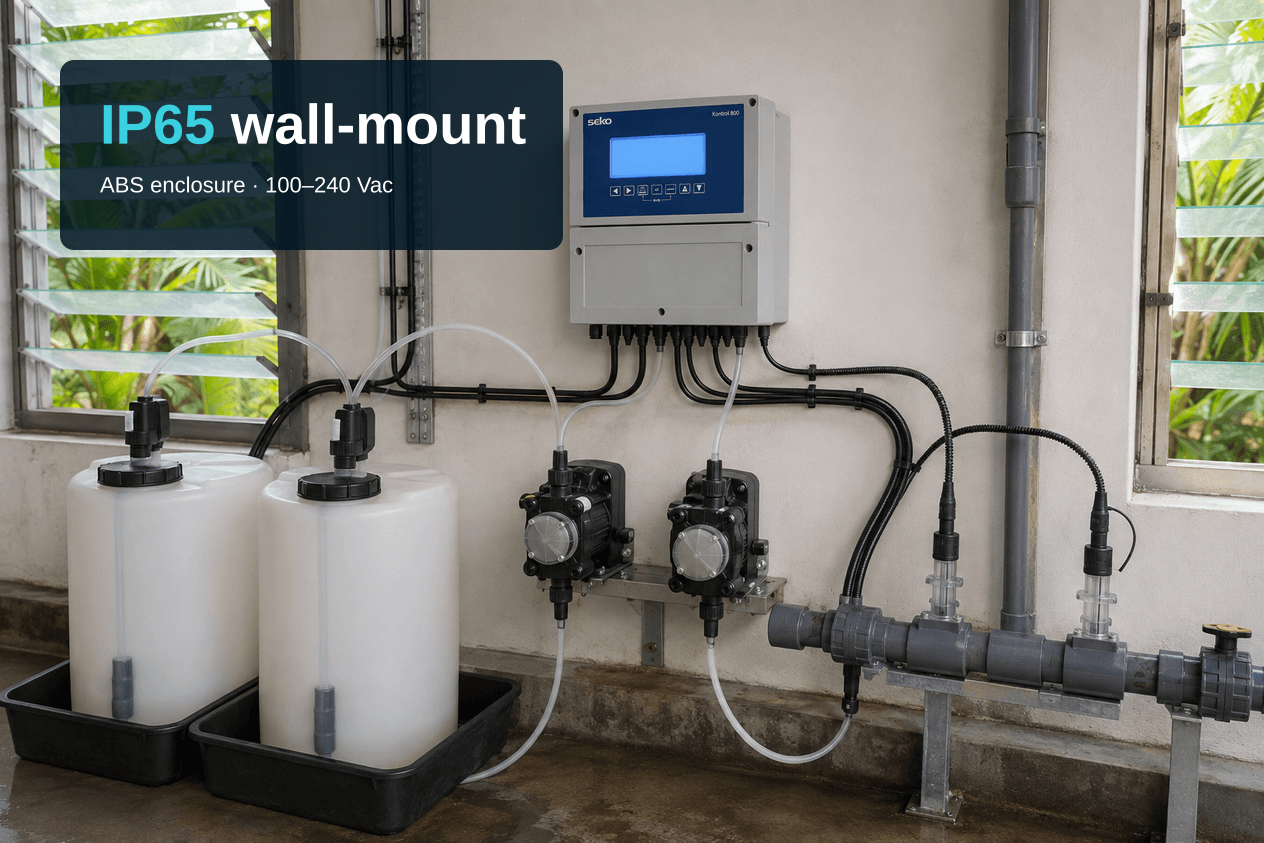

- Enclosure
- Wall-mount ABS, IP65

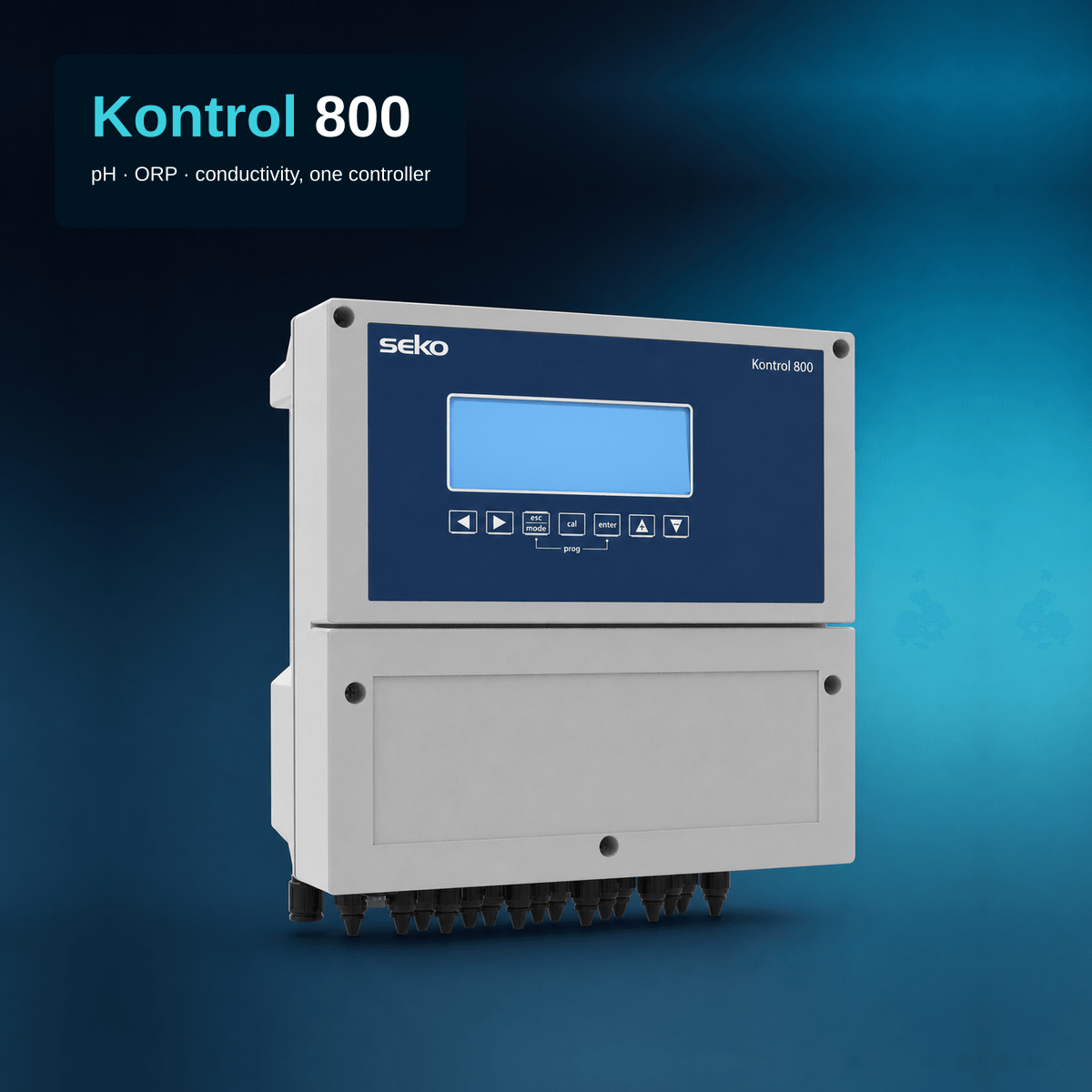

Multi-Parameter Controller — Kontrol 800
The Kontrol 800 is a dedicated multi-parameter controller for complex applications that require a number of chemical parameters to be checked at the same time. It features independent proportional control outputs, two programmable frequency outputs, an RS485 serial port with Modbus protocol, probe quality checking and data logging. The build listed here (K800L05) measures pH, ORP and conductivity.
Outputs & inputs (datasheet)
- Clock
- Clock module with backup battery
- Inputs
- Flow (pull-up, Reed sensor input); Hold
- Relays
- Six, 250 Vac 7 A: four 100–240 V power relays and two dry-contact relays (the datasheet narrative says three relay outputs; its output list says six)
- Current outputs
- 2 channels, 0/4–20 mA, 500 Ω maximum load (precision ±0.01 mA)
- Frequency outputs
- 2 channels, open collector NPN/PNP, 0–120 pulses per minute (precision 0.016 Hz)
Interface & enclosure

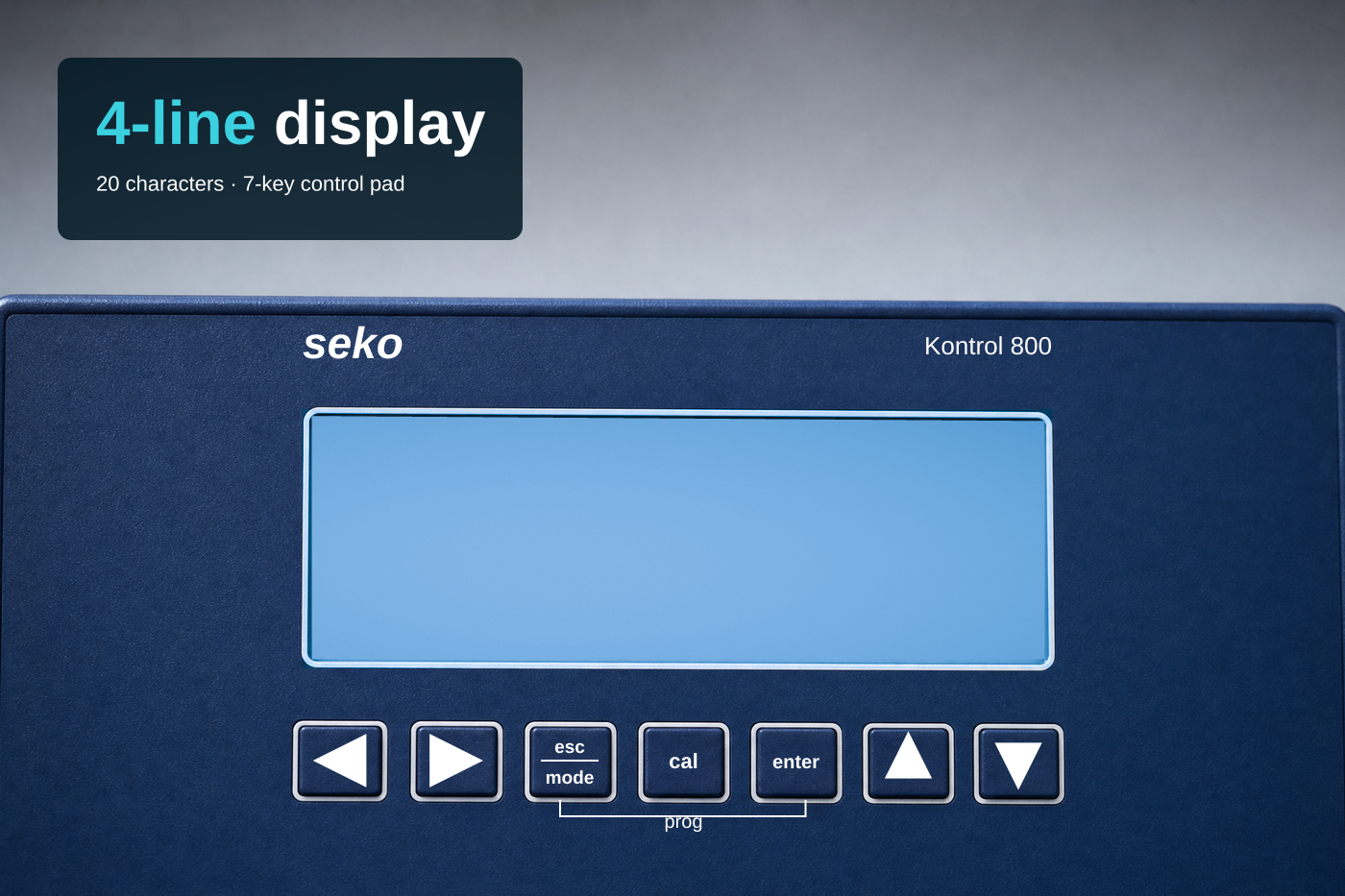

- Display
- 4-line display, 20 large white and blue characters
- Keyboard
- 7 keys
- Connections
- Dual-row connectors
- Enclosure dimensions
- 278 mm (W) × 285 mm (H) × 139.5 mm (D)
- Operating environment
- 0–40°C; relative humidity 0–95% (without condensation)
Functions
- Probe life
- Probe life statistics tracking (US product page)
- Data logging
- Data logger function
- Probe quality
- Probe quality checking (datasheet); electrode quality function (product page)
- Relay activation
- Multi-method relay activation (product page)
Best for
Key product advantages
- Reads pH, ORP and conductivity on one controller (K800L05 build)
- Independent proportional control outputs
- Two programmable frequency outputs and two 0/4–20 mA current outputs
- RS485 serial port with Modbus protocol
- Probe quality checking and data logging
