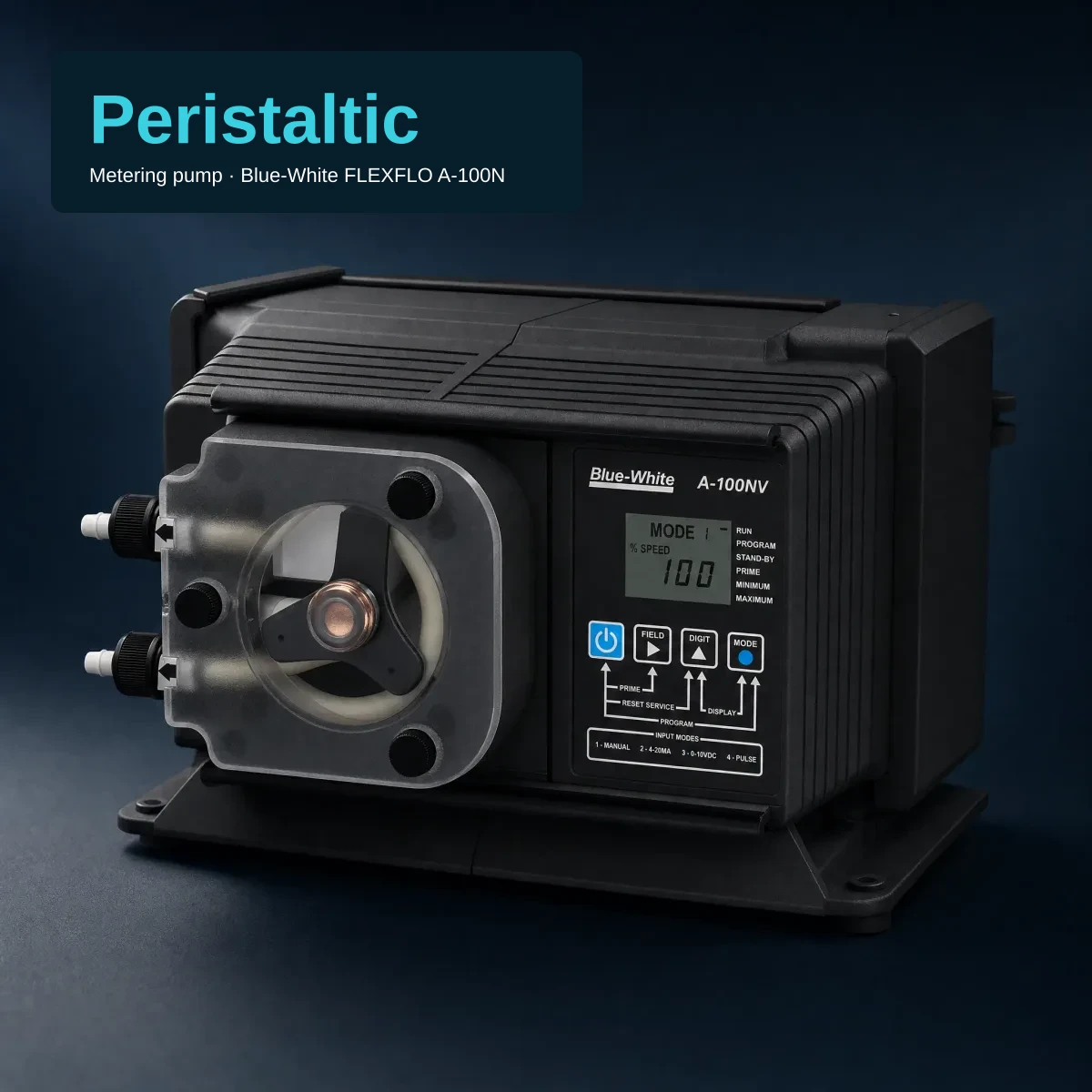

Blue-White FLEXFLO A-100N Peristaltic Metering Pump
Compact peristaltic metering pump with patented TFD+ tube-failure detection; maximum output 0.36–19.56 L/h depending on tube and motor speed (Blue-White data sheet), and self-priming per Blue-White.
Key specifications
Standard Drive (A-100NV / A-100NF)
- Flow rate
- Maximum output 0.36–19.56 L/h by tube and motor speed
- Max pressure
- Up to 100 psig (6.9 bar), depending on the tube
- Control
- Variable speed (NV) or dial knob (NF)
- Power (115VAC / 60Hz)
- 1.37 A (14 and 30 RPM) / 1.87 A (45 and 60 RPM)
- Power (220VAC / 50Hz)
- 0.68 A (14 and 30 RPM) / 1.14 A (45 and 60 RPM)
Polymer Drive (A-100NVP / A-100NFP)
- Max pressure
- 65 psig (4.5 bar)
- Control
- Variable speed (NVP) or dial knob (NFP)
Peristaltic Metering — Tube Failure Detection (TFD+)

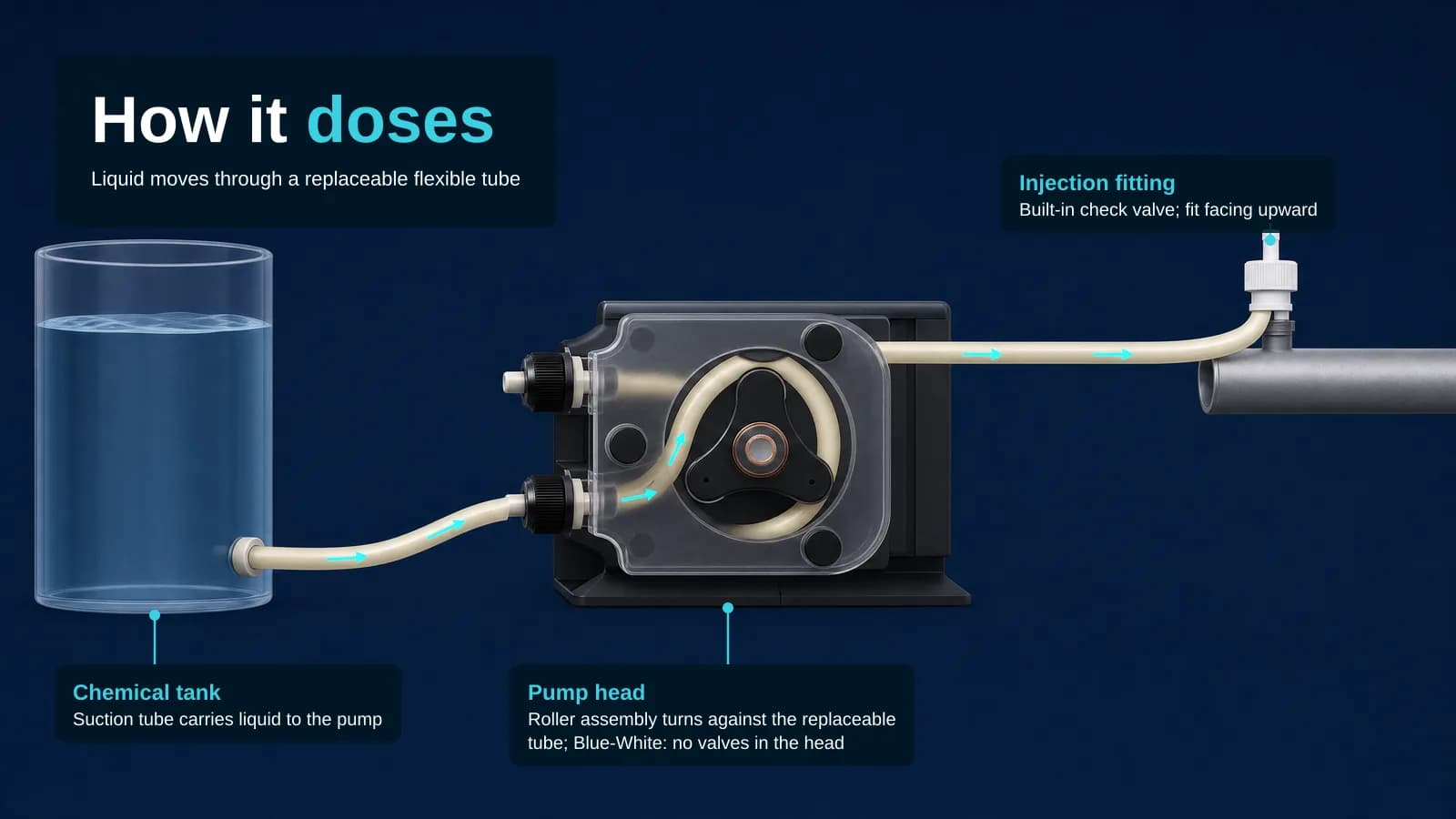

The A-100N is a peristaltic metering pump that is self-priming even against maximum line pressure, cannot vapor lock or lose prime, and has no valves that can clog; its output volume is not affected by changes in back pressure. A variable-speed DC motor provides up to 20:1 turndown (model-dependent), and the patented Tube Failure Detection (TFD+) sensor senses tube failure and signals it through an alarm output. Tube choice sets the pressure rating and output range.
Tube selection — maximum output across 14–60 RPM models (A-100NF / A-100NV)
- Tube 1 — 1/4″ OD Flex-A-Thane®
- 65 psi (4.5 bar) · 0.90–4.02 L/h
- Tube 2 — 3/8″ OD Flex-A-Thane®
- 65 psi (4.5 bar) · 1.92–8.40 L/h
- Tube 4 — 1/4″ OD Flex-A-Prene®
- 100 psi (6.9 bar), 75 psi at 60 RPM · 0.36–1.50 L/h
- Tube 6 — 3/8″ OD Flex-A-Prene®
- 100 psi (6.9 bar), 75 psi at 60 RPM · 1.10–4.7 L/h
- Tube 8 — 7/16″ OD Flex-A-Chem®
- 50 psi (3.5 bar) · 2.40–10.8 L/h
- Tube 3 — 7/16″ OD Flex-A-Thane®
- 50 psi (3.5 bar) · 4.37–19.56 L/h
- Tube 7 — 7/16″ OD Flex-A-Prene®
- 50 psi (3.5 bar) · 3.40–15.0 L/h
Control inputs & signal outputs
- A-100NF control
- Analog manual speed control (dial knob)
- A-100NV control

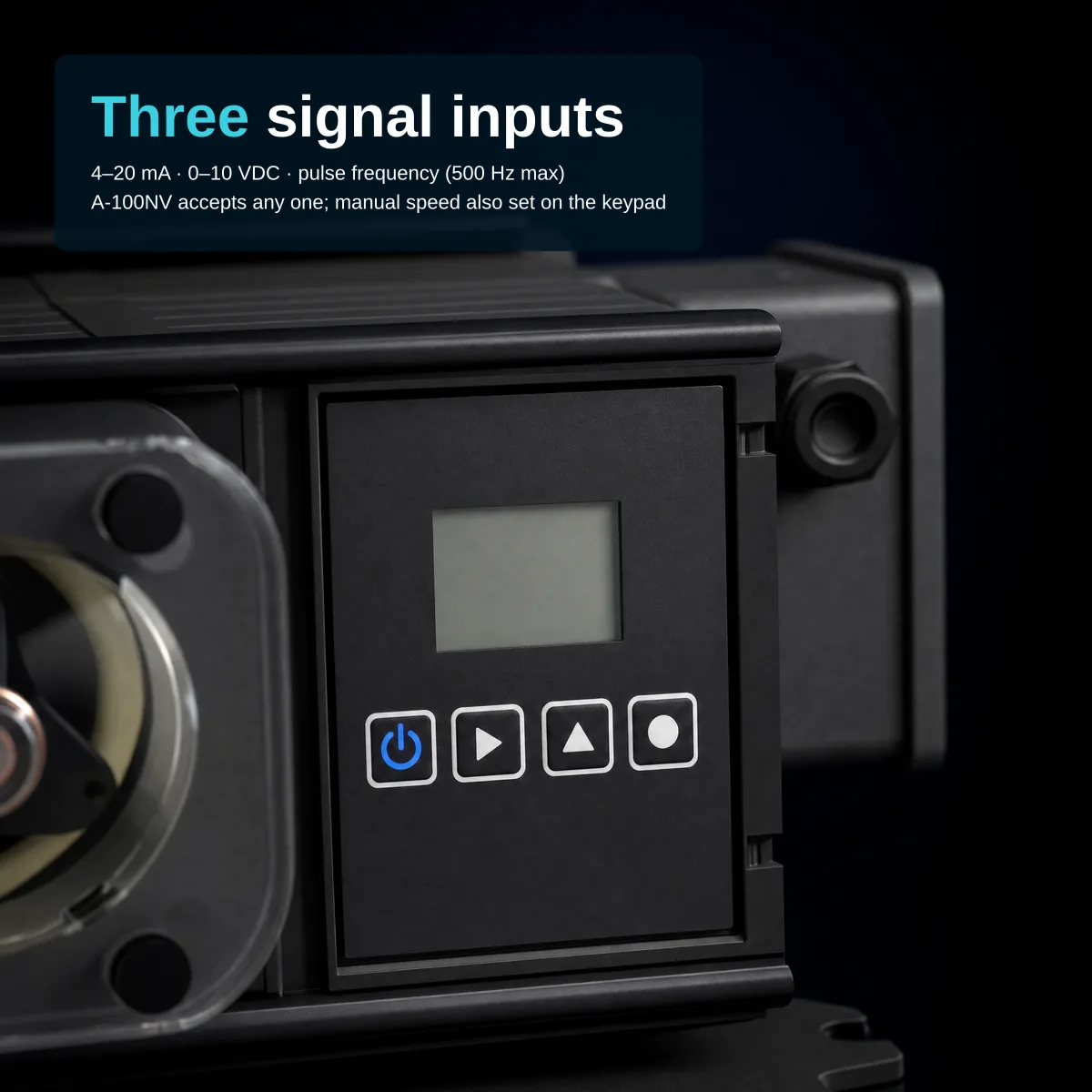

- Digital speed control; programmable 4–20 mA, 0–10 VDC and pulse/frequency inputs
- TFD+ alarm output
- A-100NF open collector; A-100NV contact closure (per the control-methods table; the specification row describes an open-collector output)
- TFD+ output rating
- 6–30 VDC collector voltage, 50 mA max sinking current (open-collector output)
- Motor-active output
- Open collector, 6–30 VDC collector voltage, 50 mA max sinking current
- FVS (Flow Verification System)
- Compatible with optional pulse flow sensor (sold separately); stops the pump and activates an open-collector output
Materials & physical
- Warranty
- 1 year
- Spare tube
- One spare tube provided with the pump
- TFD+ sensor
- Polysulfone (PES)
- Product weight
- 8 lb (3.63 kg); approximate shipping weight 10 lb (4.5 kg)
- Adapter fittings
- PVDF (1/4″ × 3/8″ tube connection)
- Enclosure material
- Valox PBT
- Injection / back-flow check valve
- Polypropylene body and insert; ceramic check ball; Hastelloy C-276 spring; TFE/P ball-seat O-ring; FKM static-seal O-ring
Best for
Key product advantages
- Patented TFD+ tube-failure detection senses tube failure and activates an alarm output
- Self-priming even against maximum line pressure — cannot vapor lock or lose prime

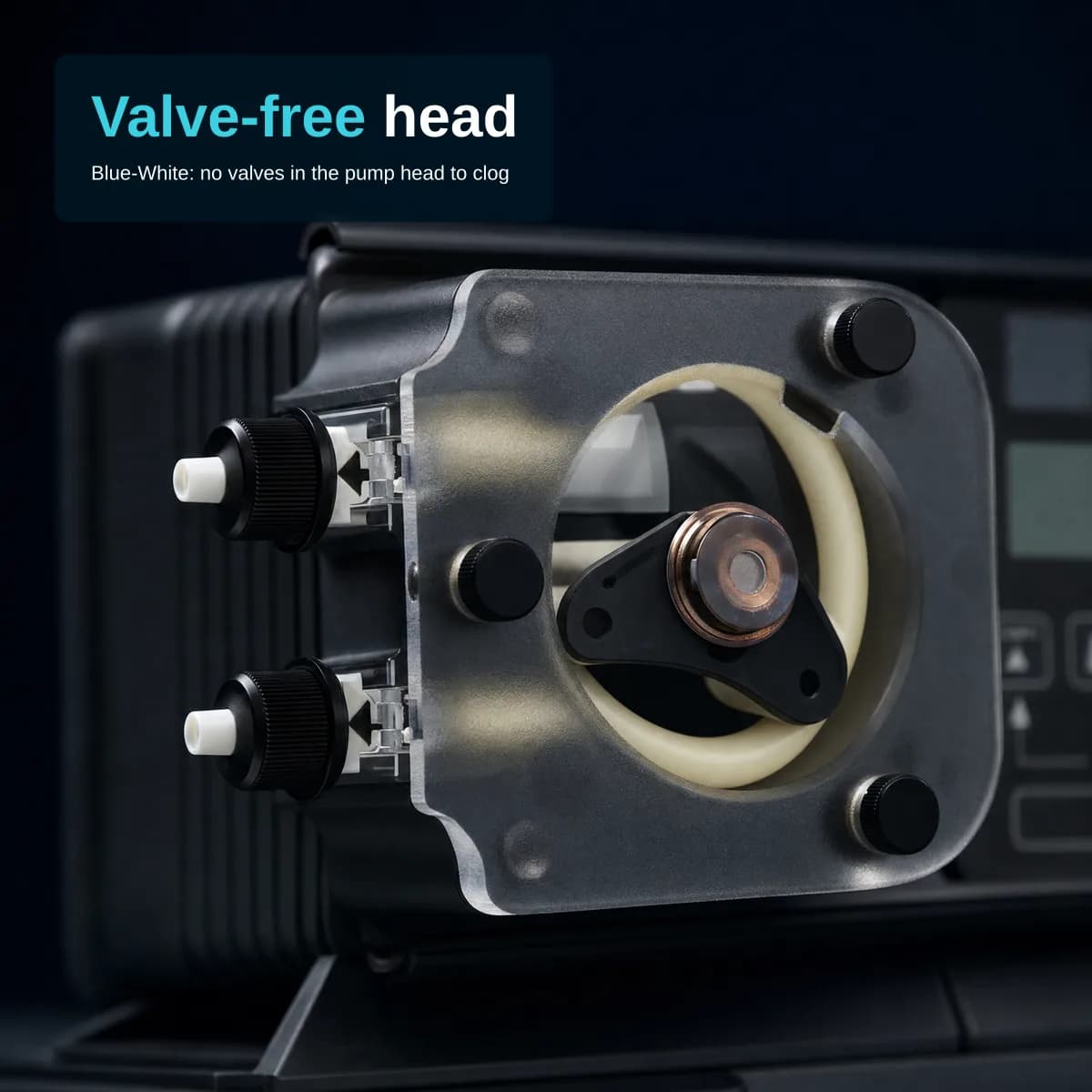

- No valves that can clog; output volume is not affected by changes in back pressure
- Gentle, nearly pulsation-free pumping action
- Handles up to 5,000 cP viscosity and 50% solids by volume
- Up to 20:1 turndown (5–100% motor speed) on 14 and 30 RPM models with tube 1, 2 or 4
