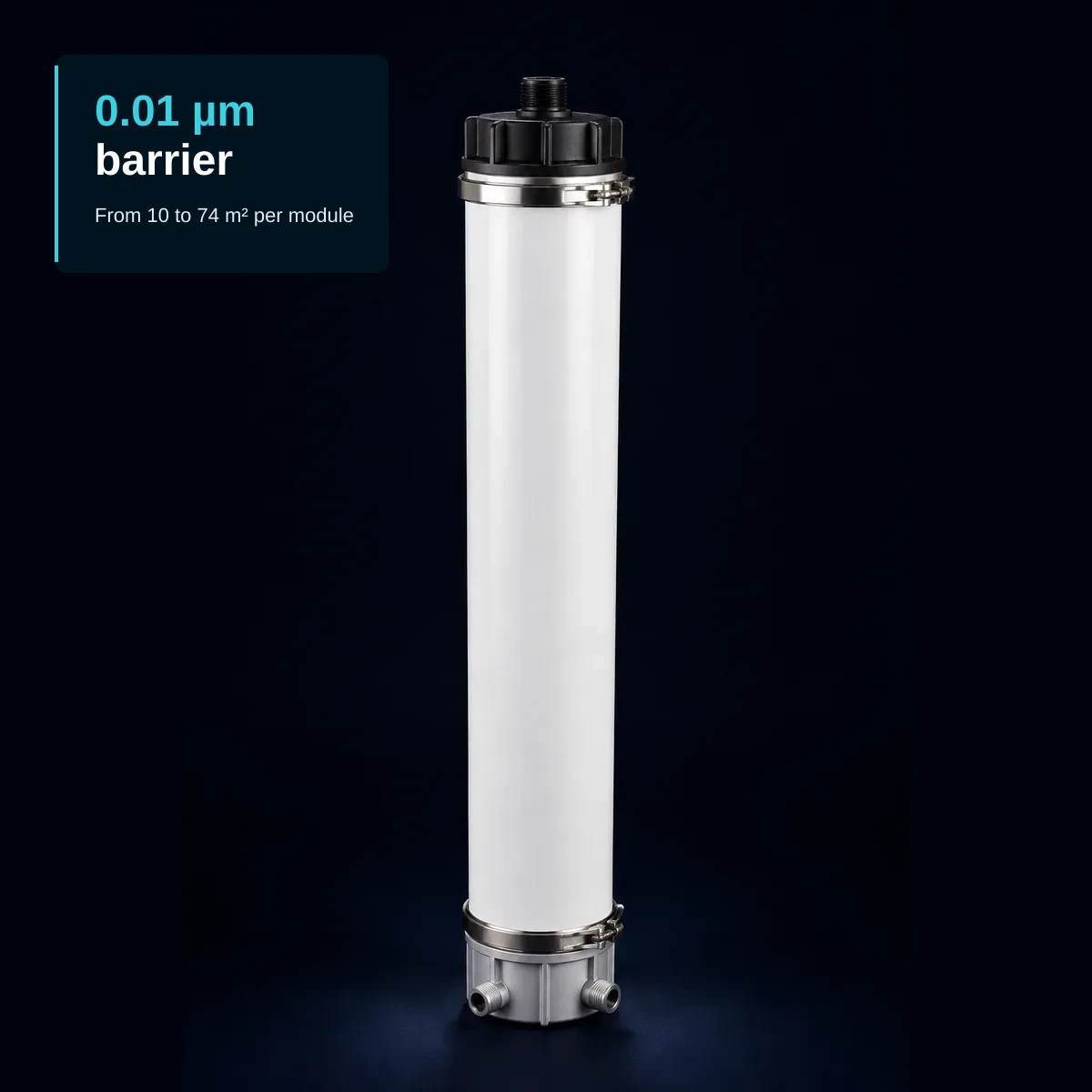

Studio product photograph of a single tall slender white PVC cylindrical hollow-fibre UF membrane module standing upright — black top end cap with small pipe port, grey lower end cap with perimeter ports, stainless-steel circumferential band clamps at both cap junctions, three-quarter perspective view on a dark ink-tone background.
HeroStudio · hero
LitreeCNChina

Litree PVC-Alloy Hollow-Fibre UF Module

Inside-out PVC-alloy hollow-fibre UF modules listed by Litree under its Industry range — 0.01 µm pore size, three module sizes from 10 m² to 74 m² membrane area.

MarketsSG · MY · ID

Key specifications

LH3-0650-V

Volume
0.6–1.6 m³/h
Membrane Area
10 m²
Dimensions
φ187 × 1,398 mm

LH3-1060-V

Volume
2.4–6.4 m³/h
Membrane Area
40 m²
Dimensions
φ277 × 1,715 mm

LH4-1080-V

Volume
3.7–14.8 m³/h
Membrane Area
74 m²
Dimensions
φ305 × 2,315 mm
ApplicationsIndustrial
Request a QuoteRequest Technical Documentation
Technical overview

PVC-Alloy Hollow-Fibre UF — Module Variants

Litree describes its LH-series modules as inside-out ultrafiltration modules built on a self-developed PVC-alloy hollow-fibre filament, with a pore size of 0.01 µm. Three module sizes — LH3-0650-V, LH3-1060-V, and LH4-1080-V — cover 10 to 74 m² of membrane area per module. Litree prints "Volume" as a range in m³/h for each model without stating its basis (flux, temperature, feed quality or filtration mode), and lists dead-end or cross-flow filtration. It names three process steps — filtration and production, backwashing, and maintenance cleaning — and publishes no figures or cleaning chemistry for them.

LH3-0650-V

Volume
0.6–1.6 m³/h
Membrane Area
10 m²
Dimensions
φ187 × 1,398 mm

LH3-1060-V

Volume
2.4–6.4 m³/h
Membrane Area
40 m²
Dimensions
φ277 × 1,715 mm

LH4-1080-V

Volume
3.7–14.8 m³/h
Membrane Area
74 m²
Dimensions
φ305 × 2,315 mm

Best for

Listed by Litree under its Industry range (Pressure UF Membrane); Litree's pages name no application for the LH modules.

Key product advantages

  • Litree describes a self-developed PVC-alloy hollow-fibre filament with good hydrophilicity, small pore size, uniform distribution, and acid and alkali resistance (the maker's characteristics; no test data published)
  • Litree lists dead-end or cross-flow filtration
  • Litree names three process steps: filtration and production, backwashing, and maintenance cleaning
  • Litree's home page states 146 patents and "Specializing in water purification for 30+ years" (company figures, not tied to the LH modules)
Product story

A closer look

Studio product photograph of a single tall slender white PVC cylindrical hollow-fibre UF membrane module standing upright — black top end cap with small pipe port, grey lower end cap with perimeter ports, stainless-steel circumferential band clamps at both cap junctions, three-quarter perspective view on a dark ink-tone background.

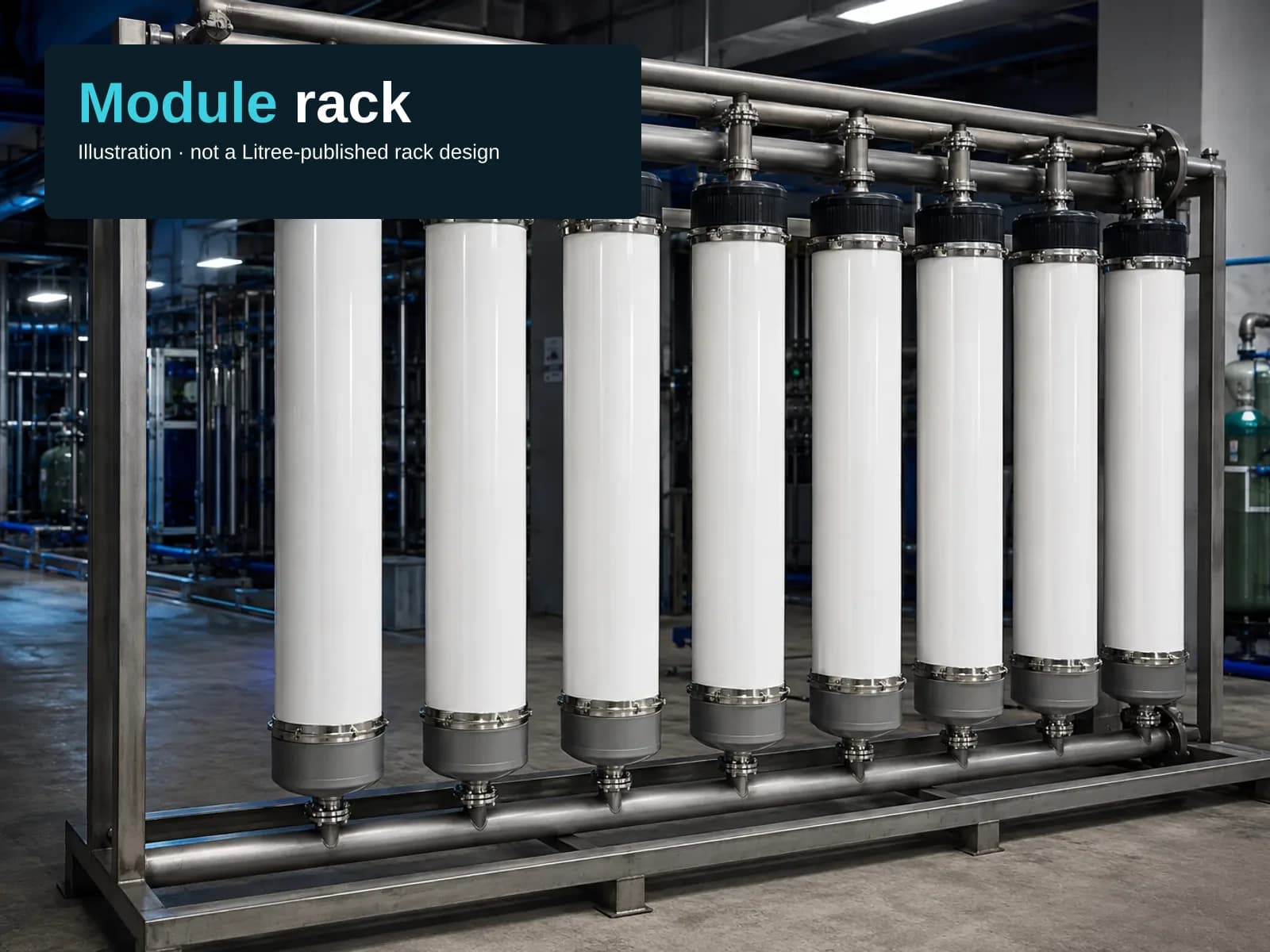

Generated illustration of a rack of eight tall slender white PVC ultrafiltration membrane modules standing vertically in a parallel array on a steel frame, with upper and lower horizontal manifold headers connecting the module ports, in an industrial plant room. A compact text block at the top-left carries the headline "Module rack", with "Module" picked out in cyan, and the subtitle "Illustration · not a Litree-published rack design".

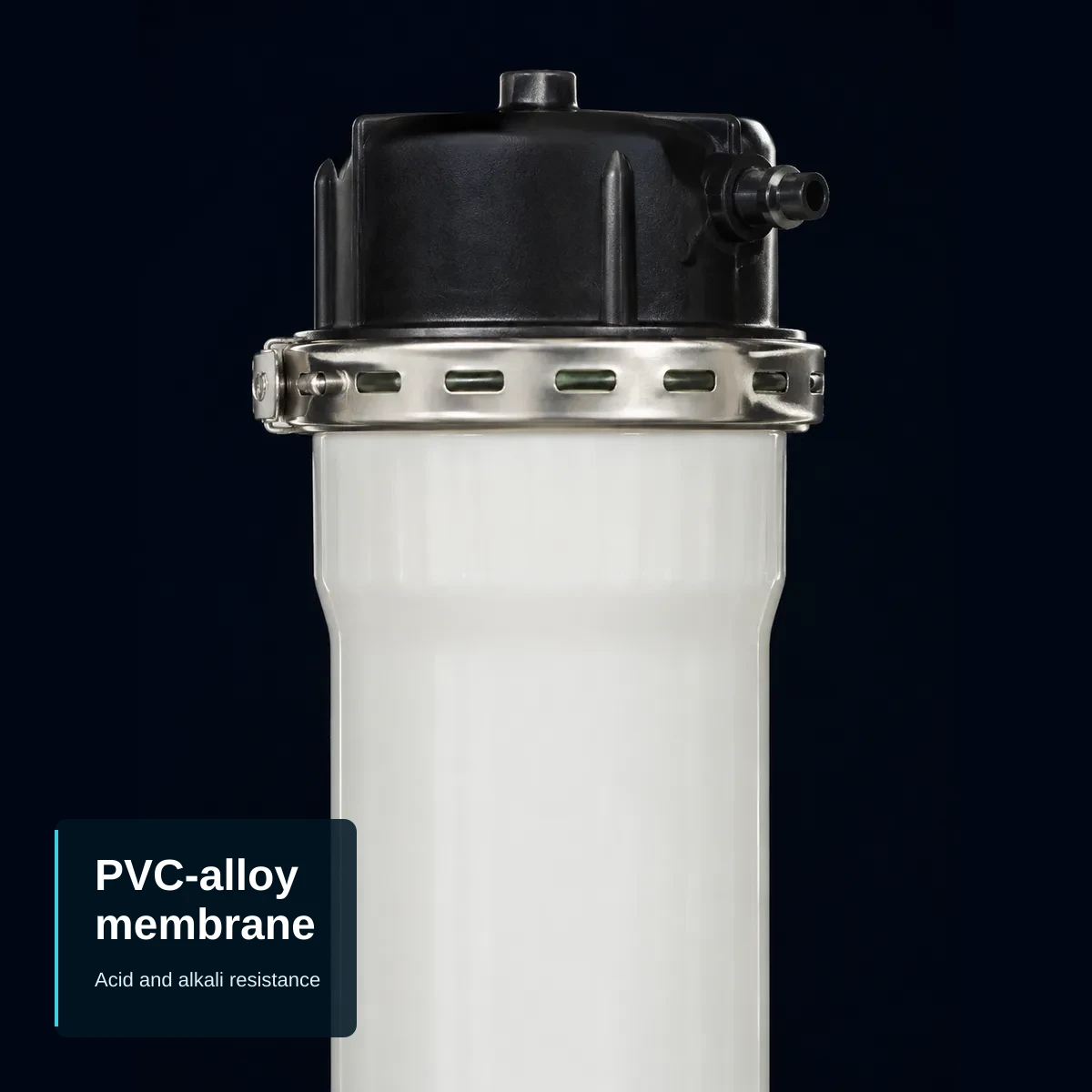

Close-up product photograph of the top end of a hollow-fibre UF membrane module — black threaded top end cap with a small round pipe port fitting at the top face, stainless-steel circumferential band clamp at the cap-to-body junction, upper portion of the white PVC cylindrical body visible below the clamp.

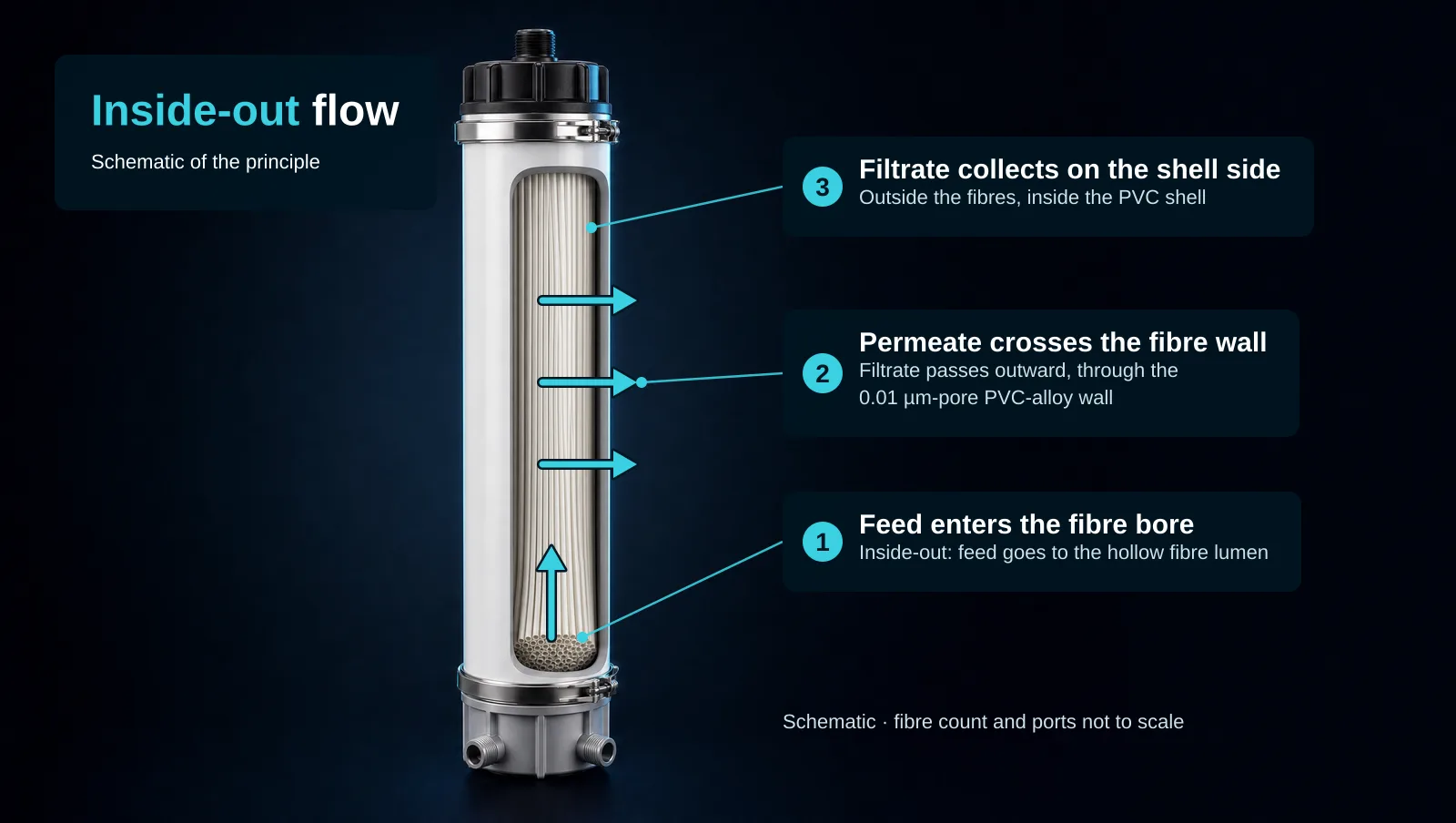

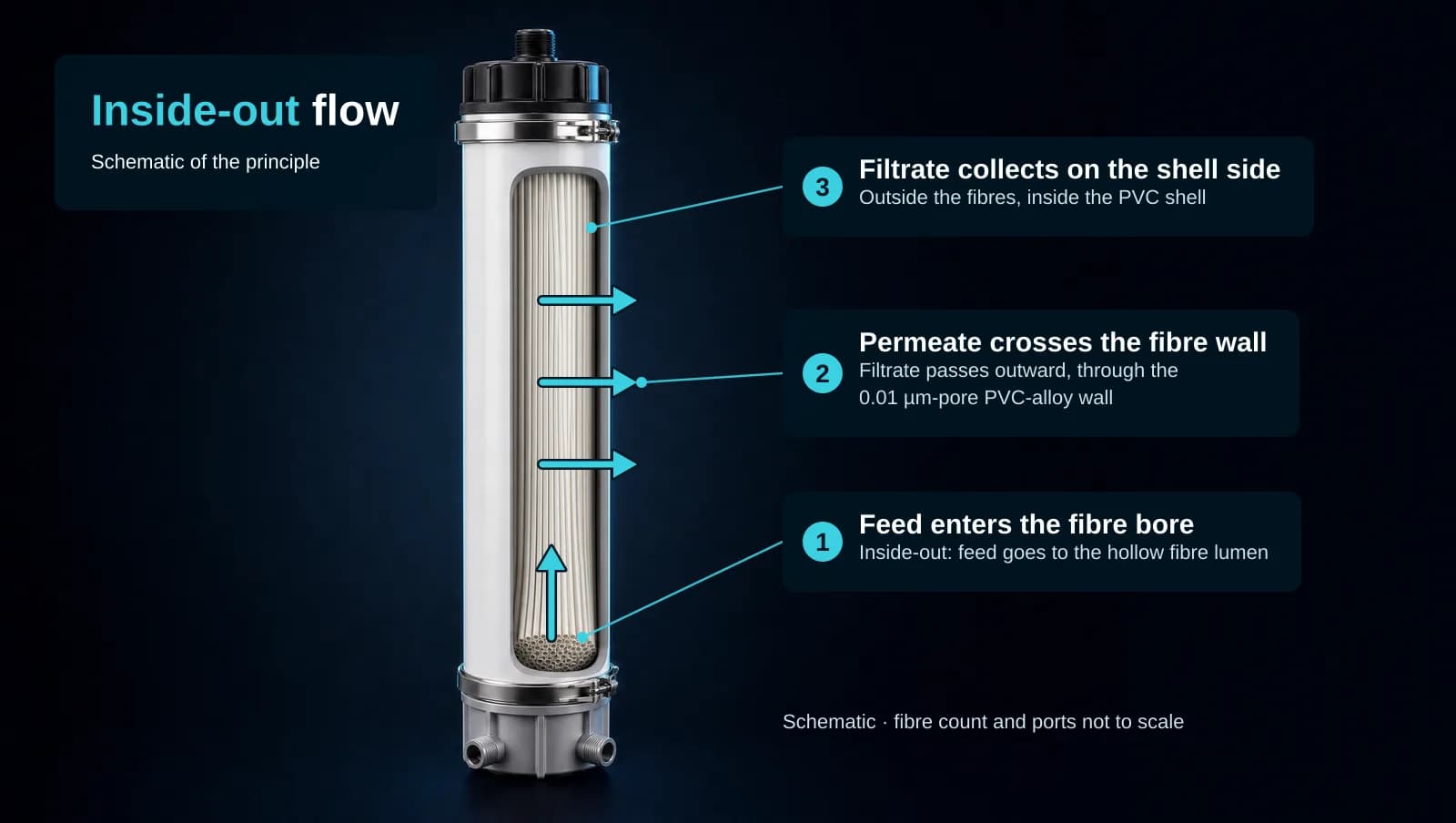

Schematic cutaway of a tall white PVC hollow-fibre UF module with the shell cut away to show the fibre bundle. Headline: Inside-out flow, Schematic of the principle. Cyan arrows: feed enters the fibre bore (arrow up the fibres), permeate crosses the fibre wall (arrows pointing outward), filtrate collects on the shell side. Callouts: 1 Feed enters the fibre bore; 2 Permeate crosses the fibre wall, 0.01 µm-pore PVC-alloy wall; 3 Filtrate collects on the shell side, outside the fibres, inside the PVC shell. Footer: Schematic · fibre count and ports not to scale.
Macro of cut hollow fibres behind a dark card reading: 0.01 µm, Pore size; Inside-out PVC-alloy hollow-fibre UF membrane; Three LH modules: 10, 40 and 74 m² membrane area; Pore size as printed by Litree.

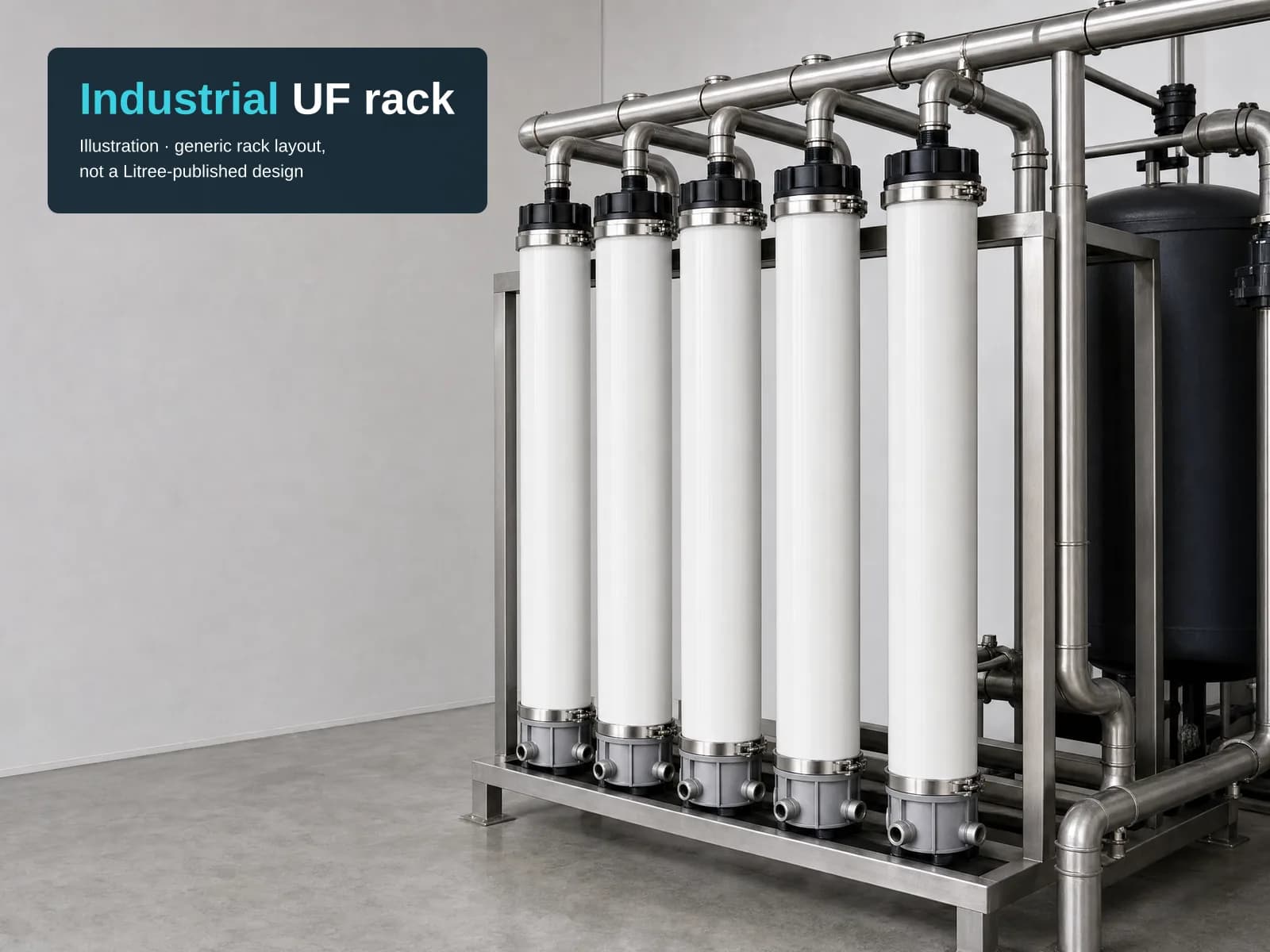

Generated illustration of five white PVC UF modules with black top caps on a stainless rack with piping in a plain industrial plant room. Overlay: Industrial UF rack; Illustration · generic rack layout, not a Litree-published design.
