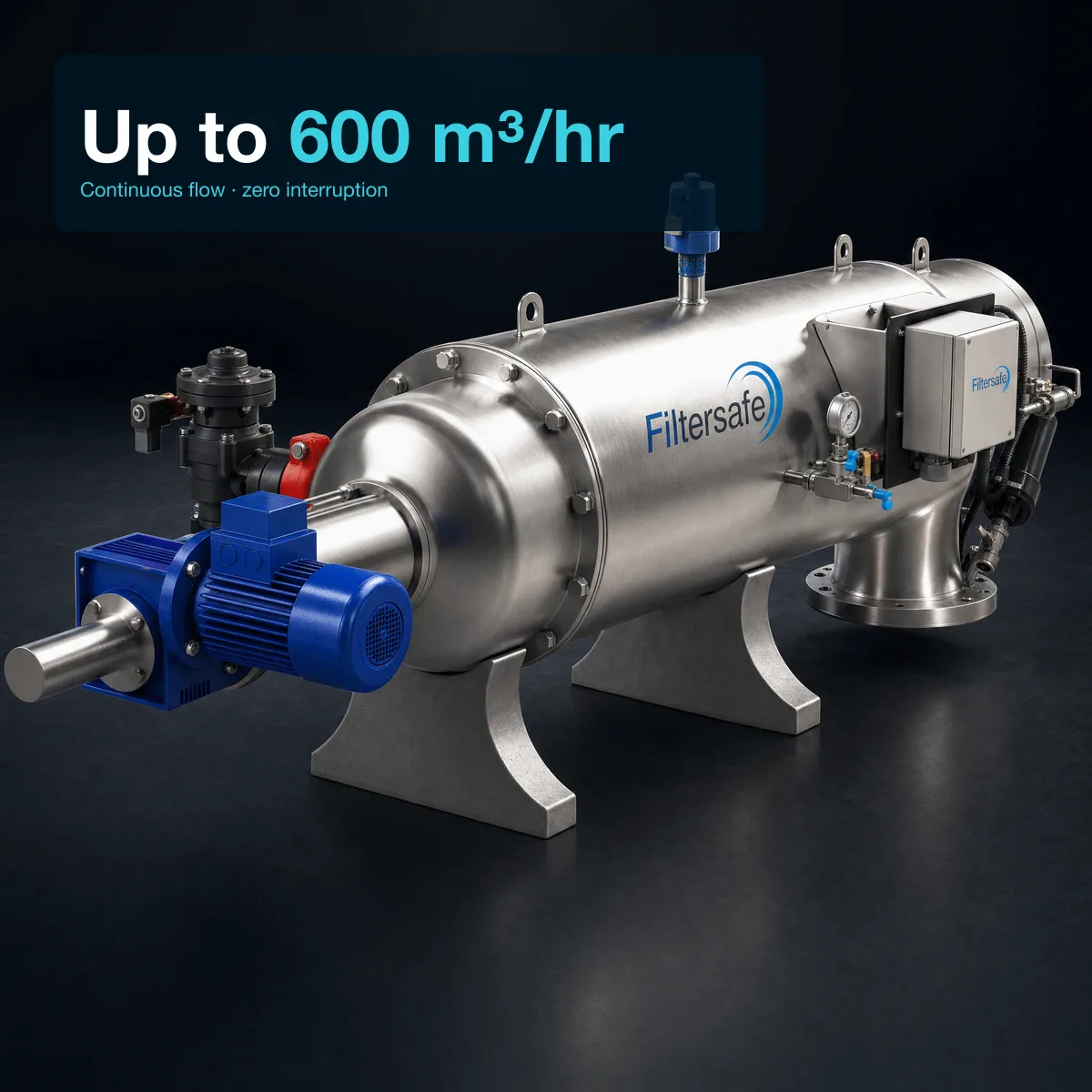

Filtersafe Trident E Series
Automatic self-cleaning screen filter for high-flow industrial, municipal, and irrigation pre-treatment — 80–500 μm, up to 600 m³/hr per unit, 316L body and screen, 1.5–1.6 bar minimum operating pressure per Filtersafe documents.
Key specifications
2" TRE0048 — Trident 4800HE
- Max Capacity
- 180 m³/hr
- Inlet / Outlet
- 4"–6" Flange
- Screen Area
- 4,800 cm²
- Filtration Range
- 80–500 μm
- Material
- Body and screen AISI 316L
3" TRE0072 — Trident 7200E
- Max Capacity
- 280 m³/hr
- Inlet / Outlet
- 6"–8" Flange
- Screen Area
- 7,200 cm²
- Filtration Range
- 80–500 μm
- Material
- Body and screen AISI 316L
4" TRE0096 — Trident 9600E
- Max Capacity
- 400 m³/hr
- Inlet / Outlet
- 8"–10" Flange
- Screen Area
- 9,600 cm²
- Filtration Range
- 80–500 μm
- Material
- Body and screen AISI 316L
5" TRE0120 — Trident 12000E
- Max Capacity
- 600 m³/hr
- Inlet / Outlet
- 10"–12" Flange
- Screen Area
- 12,000 cm²
- Filtration Range
- 80–500 μm
- Material
- Body and screen AISI 316L
Automatic Screen Filtration — EVERCLEAR® Cycle

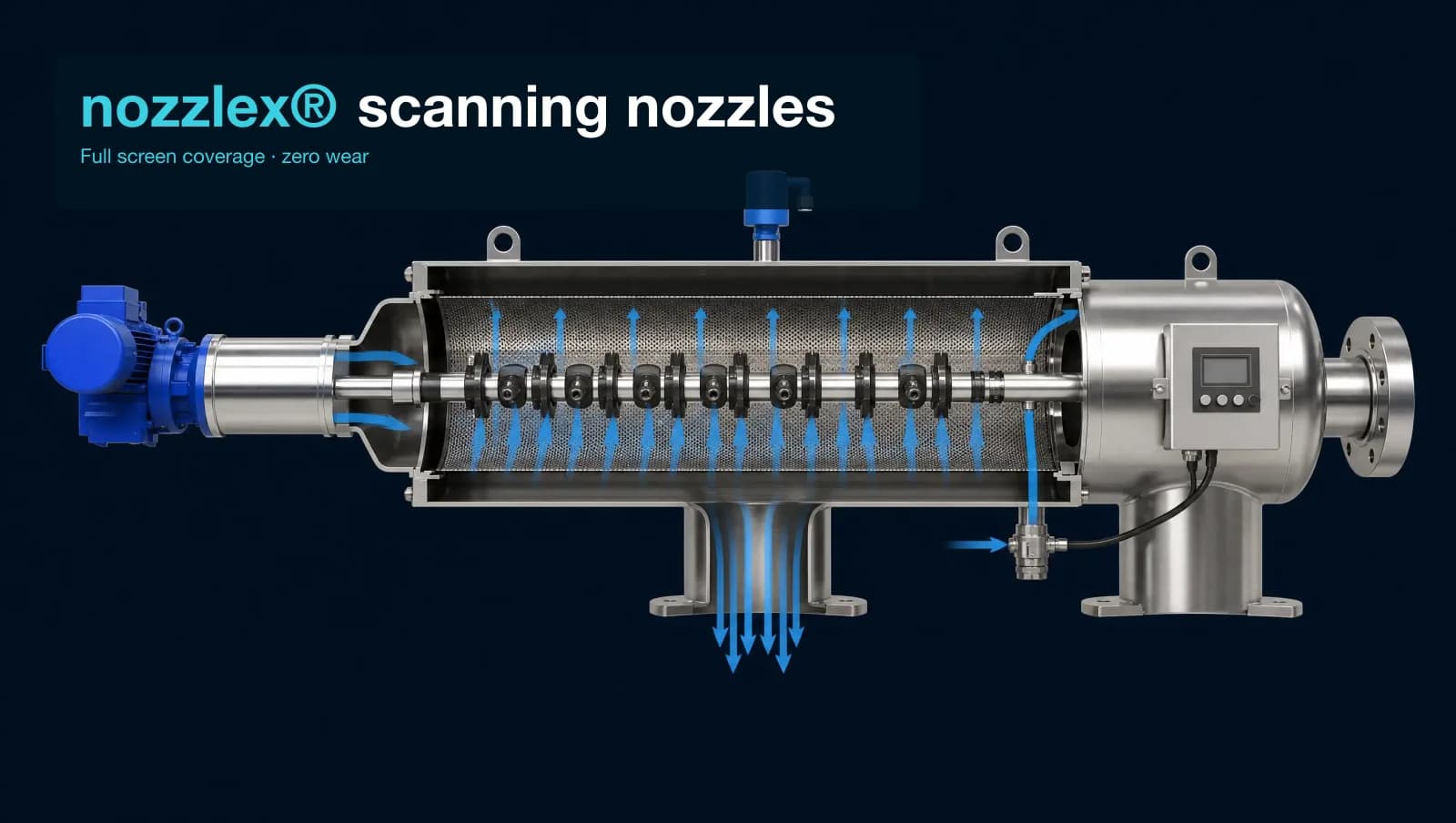

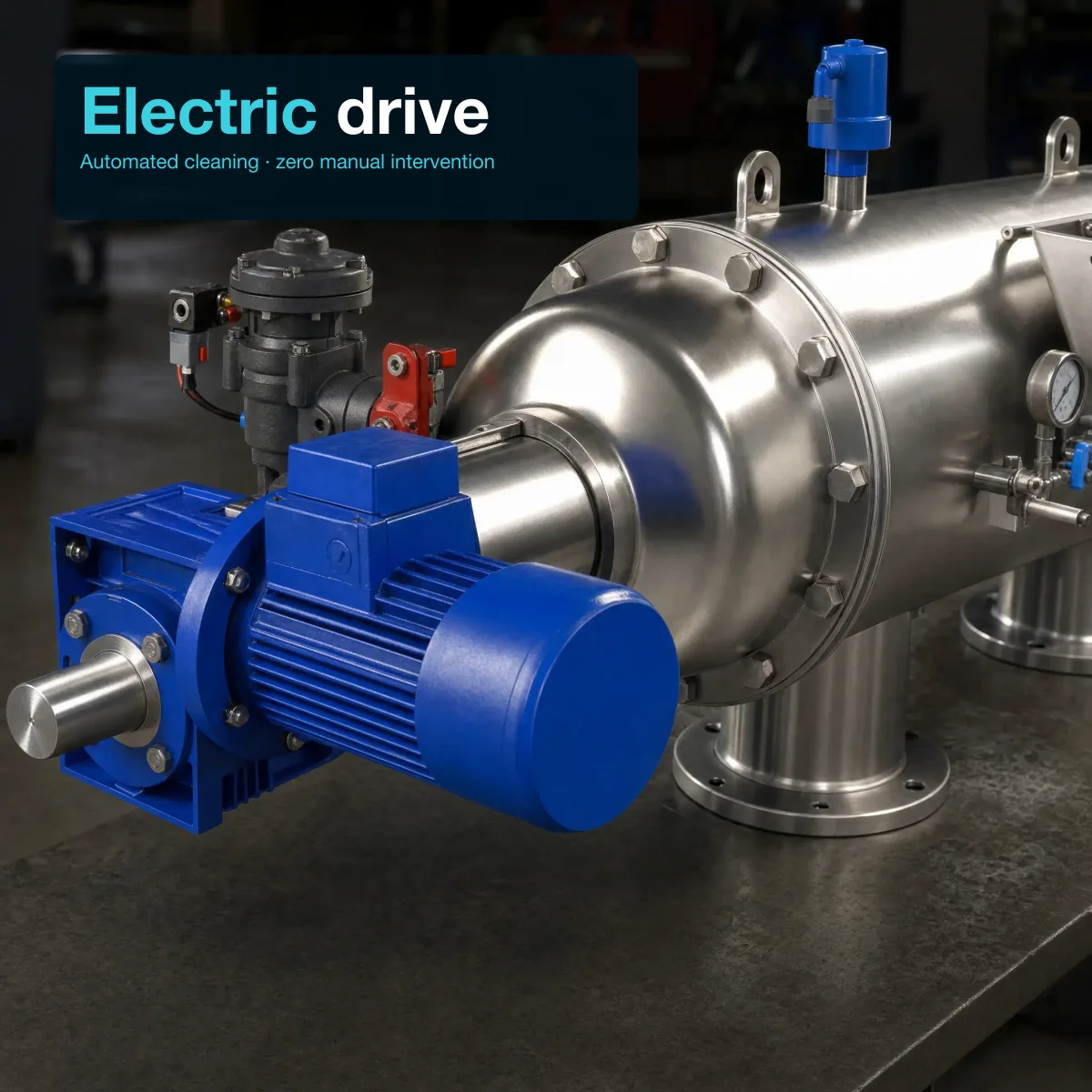

The Trident E uses a motorised nozzlex® suction nozzle to scan the full length of its smartweave™ sintered screen, drawing accumulated solids to drain while downstream flow continues uninterrupted. Cleaning is triggered automatically by differential pressure, a timer, or a manual command — flush flow is low, minimising water loss during cleaning.
2" TRE0048 — Trident 4800HE
- Max Capacity
- 180 m³/hr
- Inlet / Outlet
- 4"–6" Flange
- Screen Area
- 4,800 cm²
- Effective Area
- 4,560 cm²
3" TRE0072 — Trident 7200E
- Max Capacity
- 280 m³/hr
- Inlet / Outlet
- 6"–8" Flange
- Screen Area
- 7,200 cm²
- Effective Area
- 6,840 cm²
4" TRE0096 — Trident 9600E
- Max Capacity
- 400 m³/hr
- Inlet / Outlet
- 8"–10" Flange
- Screen Area
- 9,600 cm²
- Effective Area
- 9,120 cm²
5" TRE0120 — Trident 12000E
- Max Capacity
- 600 m³/hr
- Inlet / Outlet
- 10"–12" Flange
- Screen Area
- 12,000 cm²
- Effective Area
- 11,400 cm²
Best for
Key product advantages
- Full 316 Stainless Steel Construction (Filtersafe) — body and screen AISI 316L; 10 bar pressure rating, dependent on filtration degree, water quality and inlet size
- nozzlex® scanning nozzles — full screen coverage without screen contact or wear

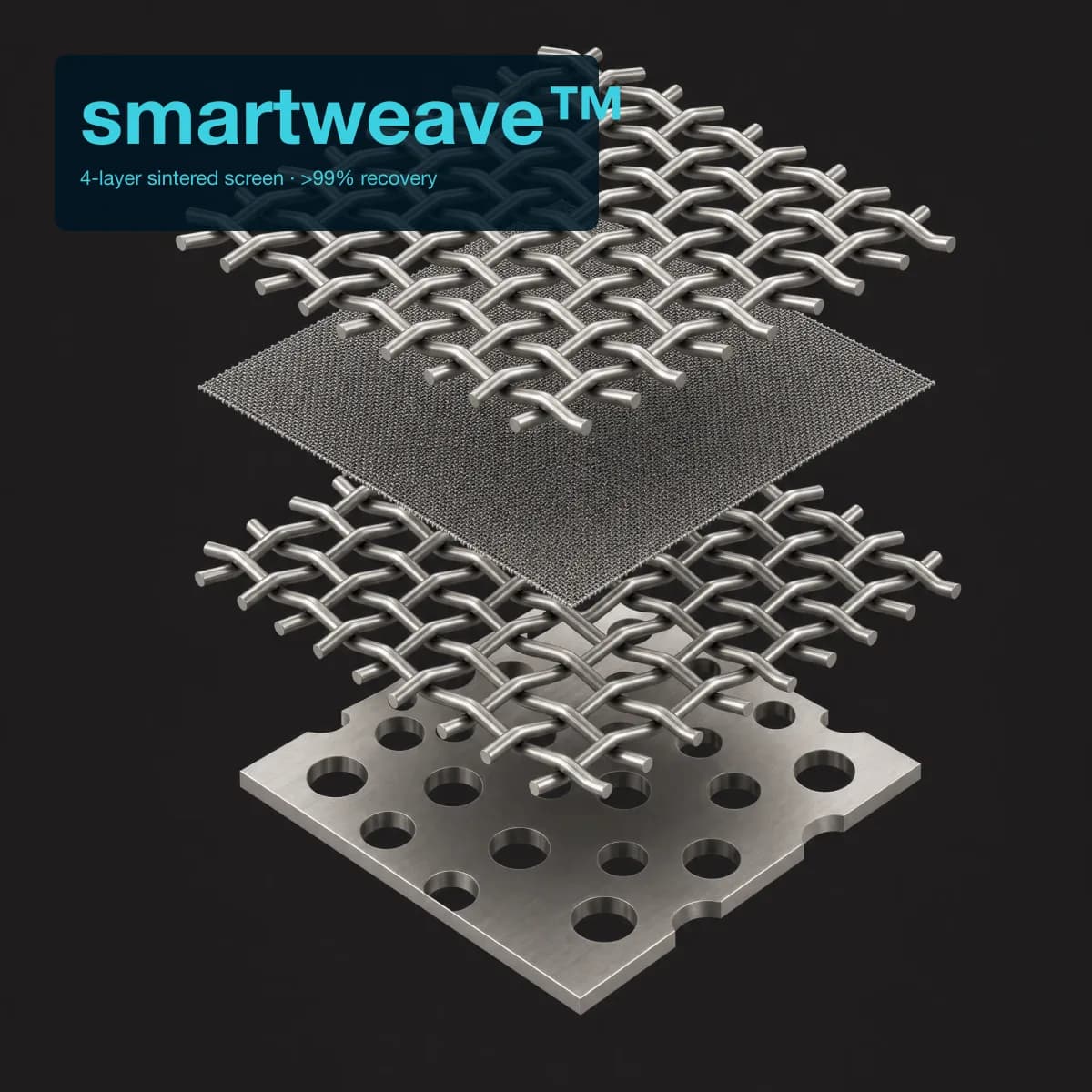

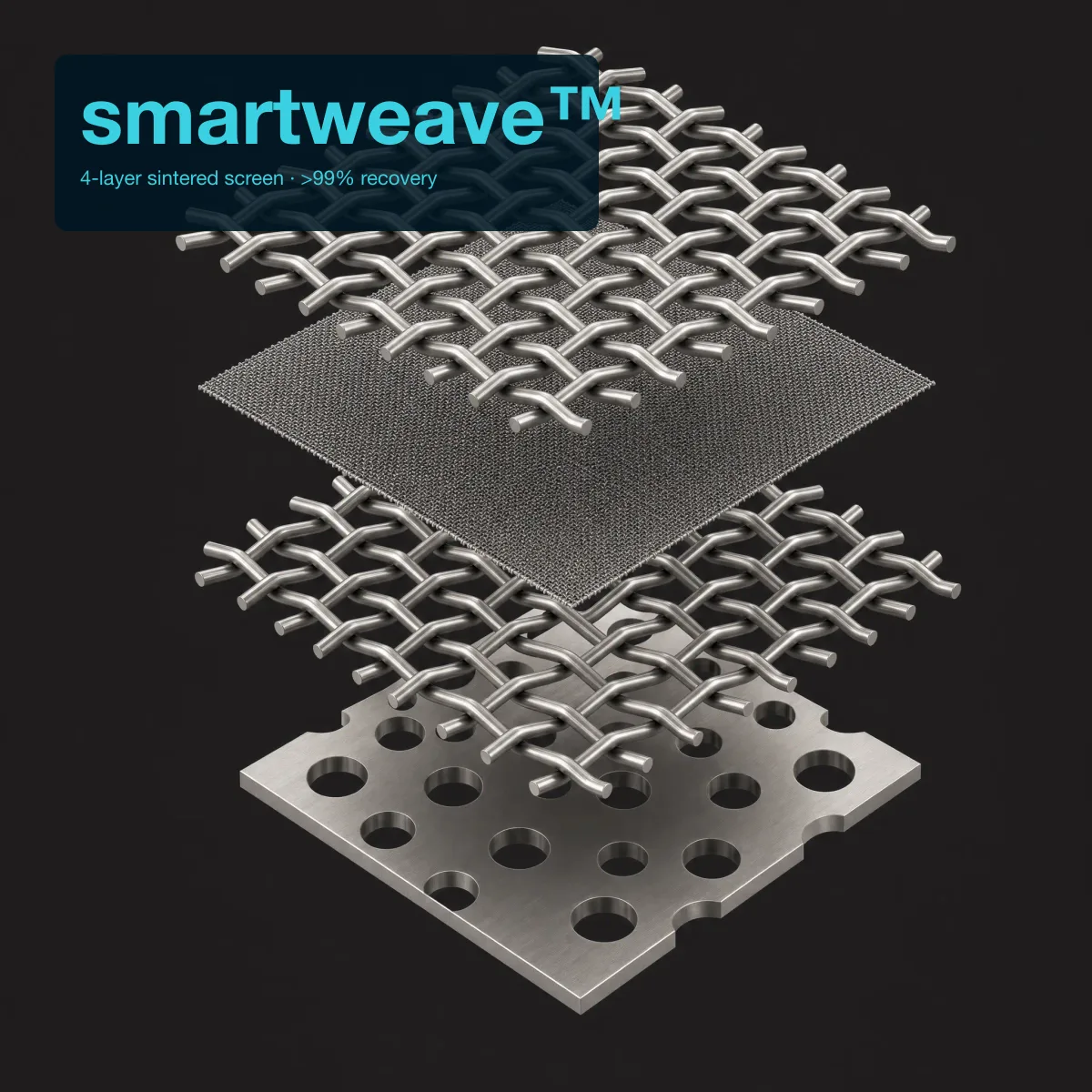

- smartweave™ 4-layer sintered screen — Filtersafe claims over 99% recovery rate (term not defined)
- Less than 1% backwash water consumption during the automated EVERCLEAR® cycle — minimal water loss during cleaning
- Continuous downstream flow during the automated EVERCLEAR® cycle — no process interruption
